16100-2RS

Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agree
$10.78 USD
$10.78 USD
Sale Sold out
Bore10 mm 0.3937 in
Outside dia.28 mm 1.1024 in
Width8 mm 0.315 in
TypeDeep groove ball bearing
SealingContact rubber seals, both sides
ClearanceNormal
Ships from US partner stock — flat-rate shipping, calculated by weight at checkout

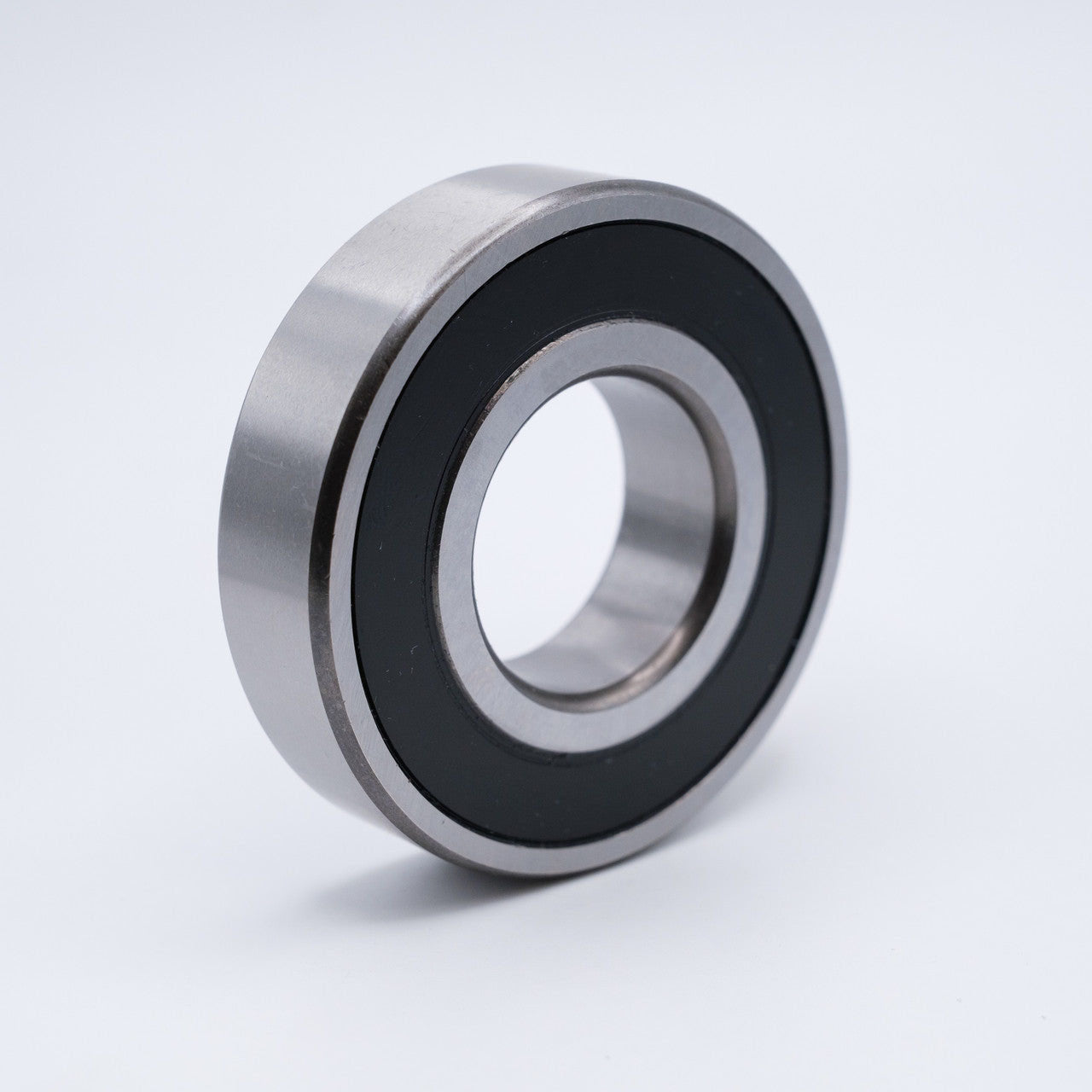

  • 16100-2RS Ball Bearings
1 1

Image is for illustration purposes only.

What 16100-2RS means

CodePositionMeaning
161 Series Series 161: deep groove ball bearing, narrower than the 61-series equivalent of the same bore
00 Bore Bore code 00 = 10 mm (codes 00, 01, 02 and 03 are fixed at 10, 12, 15 and 17 mm)
2RS Closure Contact rubber seals, both sides

Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.

16100-2RS specifications

Specification Metric Inch Basis
Bore (d) 10 mm 0.3937 in ISO table for this designation, confirmed by supplier data
Outside diameter (D) 28 mm 1.1024 in Maker's catalogue (PEER Bearing), confirmed by supplier data
Width (B) 8 mm 0.315 in Maker's catalogue (PEER Bearing), confirmed by supplier data
Bearing type Deep groove ball bearing Stated by the designation
Seals / shields Contact rubber seals, both sides Stated by the designation
Internal clearance Normal (CN): no clearance code in the designation Stated by the designation
Tolerance class Normal (ISO P0 / ABEC 1): no tolerance-class code Stated by the designation

16100-2RS is a deep groove ball bearing, 10 mm bore × 28 mm OD × 8 mm wide (0.3937 × 1.1024 × 0.315 in). It has rubber contact seals on both sides.

The 16100-2RS is a deep groove ball bearing from the 16000 series, featuring a 10 mm bore diameter and contact rubber seals on both sides for protection against contaminants. This single row design provides reliable radial load support in a compact envelope.

16100-2RS 16000 Series Ball Bearing
