16024-C3
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeCouldn't load pickup availability
Ships from our European partner stock — allow 5–8 business days

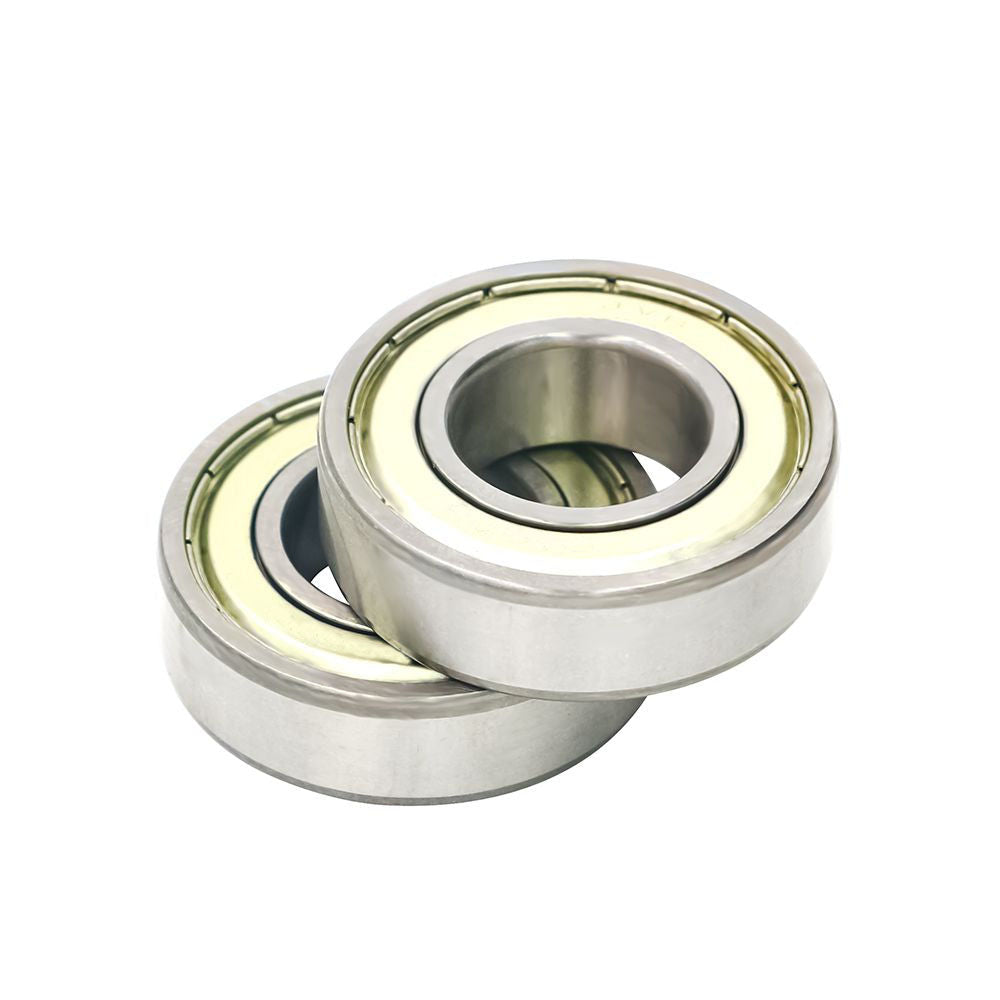

Image is for illustration purposes only.
What 16024-C3 means
| Code | Position | Meaning |
|---|---|---|
160 |
Series | Series 160: deep groove ball bearing, narrower than the 60-series equivalent of the same bore |
24 |
Bore | Bore code 24 × 5 = 120 mm |
C3 |
Internal clearance | C3: radial internal clearance greater than Normal |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
16024-C3 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 120 mm | 4.7244 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 180 mm | 7.0866 in | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Width (B) | 19 mm | 0.748 in | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Bearing type | Deep groove ball bearing | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Internal clearance | C3 (greater than Normal) | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
Equivalent to / interchanges with
| Brand | Part number | Basis |
|---|---|---|
| SKF | 16024 C3 | Brand suffix convention for this ISO size |
| TIMKEN | 16024 C3 | Brand suffix convention for this ISO size |
| FAG | 16024 C3 | Brand suffix convention for this ISO size |
| NSK | 16024 C3 | Brand suffix convention for this ISO size |
| NTN | 16024 C3 | Brand suffix convention for this ISO size |
| KOYO | 16024 C3 | Brand suffix convention for this ISO size |
| NACHI | 16024 C3 | Brand suffix convention for this ISO size |
Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables
16024-C3 is a deep groove ball bearing, 120 mm bore × 180 mm OD × 19 mm wide (4.7244 × 7.0866 × 0.748 in). It has no seals or shields (open) and C3 internal clearance. Other makers sell the same size as SKF 16024 C3, TIMKEN 16024 C3, FAG 16024 C3, NSK 16024 C3.
The 16024-C3 is a deep groove ball bearing with a 120mm bore diameter from the 160 series. It features C3 radial internal clearance, which is greater than normal clearance, making it suitable for applications with thermal expansion or shaft/housing fits that reduce operating clearance.
