16022-C3
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeCouldn't load pickup availability
Ships from our European partner stock — allow 5–8 business days

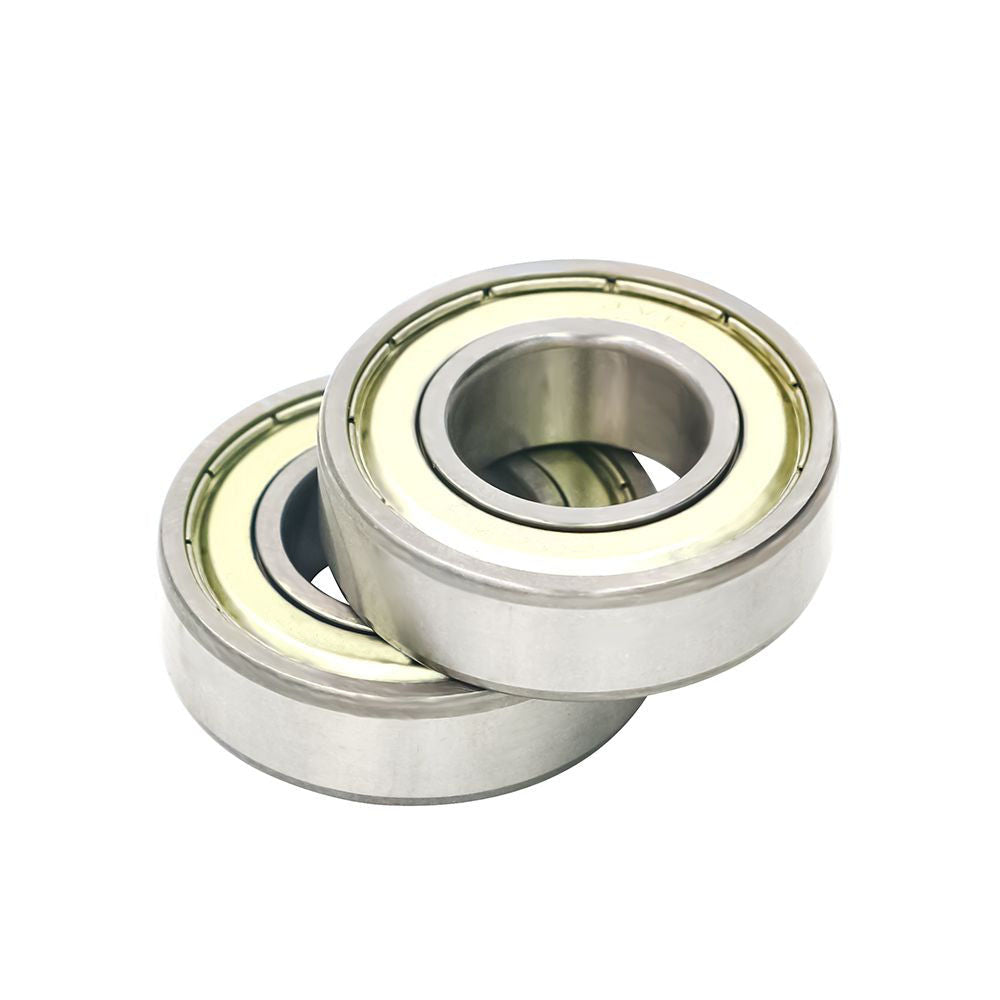

Image is for illustration purposes only.
What 16022-C3 means
| Code | Position | Meaning |
|---|---|---|
160 |
Series | Series 160: deep groove ball bearing, narrower than the 60-series equivalent of the same bore |
22 |
Bore | Bore code 22 × 5 = 110 mm |
C3 |
Internal clearance | C3: radial internal clearance greater than Normal |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
16022-C3 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 110 mm | 4.3307 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 170 mm | 6.6929 in | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Width (B) | 19 mm | 0.748 in | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Bearing type | Deep groove ball bearing | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Internal clearance | C3 (greater than Normal) | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
Equivalent to / interchanges with
| Brand | Part number | Basis |
|---|---|---|
| SKF | 16022 C3 | Brand suffix convention for this ISO size |
| TIMKEN | 16022 C3 | Brand suffix convention for this ISO size |
| FAG | 16022 C3 | Brand suffix convention for this ISO size |
| NSK | 16022 C3 | Brand suffix convention for this ISO size |
| NTN | 16022 C3 | Brand suffix convention for this ISO size |
| KOYO | 16022 C3 | Brand suffix convention for this ISO size |
| NACHI | 16022 C3 | Brand suffix convention for this ISO size |
Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables
16022-C3 is a deep groove ball bearing, 110 mm bore × 170 mm OD × 19 mm wide (4.3307 × 6.6929 × 0.748 in). It has no seals or shields (open) and C3 internal clearance. Other makers sell the same size as SKF 16022 C3, TIMKEN 16022 C3, FAG 16022 C3, NSK 16022 C3.
The 16022-C3 is a deep groove ball bearing with a 110mm bore diameter from the 160 series. It features C3 radial internal clearance, providing greater clearance than standard for applications involving thermal expansion or shaft deflection.
