16008-ZZ

Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agree
$26.47 USD
$26.47 USD
Sale Sold out
Bore40 mm 1.5748 in
Outside dia.68 mm 2.6772 in
Width9 mm 0.3543 in
TypeDeep groove ball bearing
SealingMetal shields, both sides
ClearanceNormal
Flat-rate shipping — calculated by weight at checkout
1 1

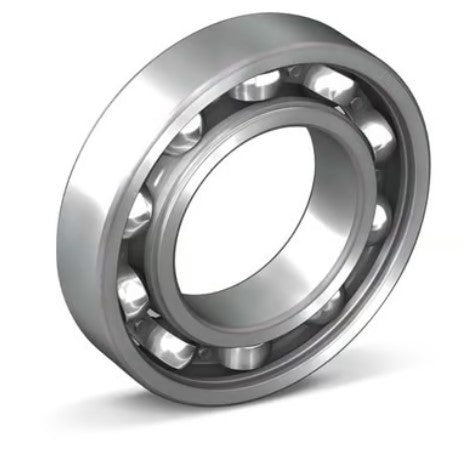

Image is for illustration purposes only.

What 16008-ZZ means

CodePositionMeaning
160 Series Series 160: deep groove ball bearing, narrower than the 60-series equivalent of the same bore
08 Bore Bore code 08 × 5 = 40 mm
ZZ Closure Metal shields, both sides

Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.

16008-ZZ specifications

Specification Metric Inch Basis
Bore (d) 40 mm 1.5748 in ISO table for this designation, confirmed by supplier data
Outside diameter (D) 68 mm 2.6772 in Maker's catalogue (PEER Bearing), confirmed by supplier data
Width (B) 9 mm 0.3543 in Maker's catalogue (PEER Bearing), confirmed by supplier data
Bearing type Deep groove ball bearing Stated by the designation
Seals / shields Metal shields, both sides Stated by the designation
Internal clearance Normal (CN): no clearance code in the designation Stated by the designation
Tolerance class Normal (ISO P0 / ABEC 1): no tolerance-class code Stated by the designation

16008-ZZ is a deep groove ball bearing, 40 mm bore × 68 mm OD × 9 mm wide (1.5748 × 2.6772 × 0.3543 in). It has metal shields on both sides.

The 16008-ZZ is a deep groove ball bearing from the 16000 series, featuring a 40mm bore diameter and metal shields on both sides for protection against contaminants. The ZZ designation indicates double metal shield enclosure, making it suitable for environments where dust and debris are present.
