16005-ZZ

Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agree
$14.22 USD
$14.22 USD
Sale Sold out
Bore25 mm 0.9843 in
Outside dia.47 mm 1.8504 in
Width8 mm 0.315 in
TypeDeep groove ball bearing
SealingMetal shields, both sides
ClearanceNormal
Ships from US partner stock — flat-rate shipping, calculated by weight at checkout
  • 16005-ZZ Ball Bearings
1 1

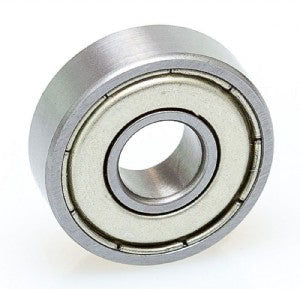

Image is for illustration purposes only.

What 16005-ZZ means

CodePositionMeaning
160 Series Series 160: deep groove ball bearing, narrower than the 60-series equivalent of the same bore
05 Bore Bore code 05 × 5 = 25 mm
ZZ Closure Metal shields, both sides

Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.

16005-ZZ specifications

Specification Metric Inch Basis
Bore (d) 25 mm 0.9843 in ISO table for this designation, confirmed by supplier data
Outside diameter (D) 47 mm 1.8504 in Maker's catalogue (PEER Bearing), confirmed by supplier data
Width (B) 8 mm 0.315 in Maker's catalogue (PEER Bearing), confirmed by supplier data
Bearing type Deep groove ball bearing Stated by the designation
Seals / shields Metal shields, both sides Stated by the designation
Internal clearance Normal (CN): no clearance code in the designation Stated by the designation
Tolerance class Normal (ISO P0 / ABEC 1): no tolerance-class code Stated by the designation

16005-ZZ is a deep groove ball bearing, 25 mm bore × 47 mm OD × 8 mm wide (0.9843 × 1.8504 × 0.315 in). It has metal shields on both sides.

The 16005-ZZ is a deep groove ball bearing with a 25 mm bore diameter and metal shields on both sides. The ZZ shield configuration provides protection from contaminants while retaining pre-packed lubrication.

16005 ZZ 16000 Series Ball Bearing

Related sizes & variants

  • 16005-2RS · 25×47×8 mm · Double Sealed
  • 16002-ZZ · 15×32×8 mm · Double Shielded
  • 16003-ZZ · 17×35×8 mm · Double Shielded
  • 16004-ZZ · 20×42×8 mm · Double Shielded
  • 16006-ZZ · 30×55×9 mm · Double Shielded
  • 16007-ZZ · 35×62×9 mm · Double Shielded
  • 16008-ZZ · 40×68×9 mm · Double Shielded

Browse all Deep Groove Ball Bearings →
