SS6309-ZZ

Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agree
$114.29 USD
$114.29 USD
Sale Sold out
Bore45 mm 1.7717 in
Outside dia.100 mm 3.937 in
Width25 mm 0.9843 in
TypeDeep groove ball bearing
SealingMetal shields, both sides
ClearanceNormal
Ships from US partner stock — flat-rate shipping, calculated by weight at checkout

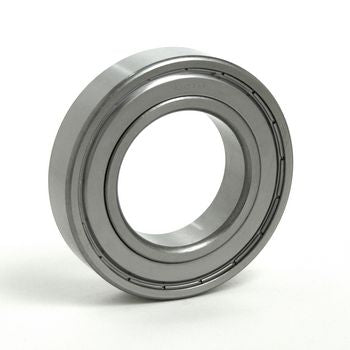

  • SS 6309 ZZ Ball Bearings RINGBALL
1 1

Image is for illustration purposes only.

What SS6309-ZZ means

CodePositionMeaning
SS Material Stainless steel rings and balls
6 Type Deep groove ball bearing
3 Diameter series Diameter series 3 (medium): fixes OD and width for the bore (ISO 15)
09 Bore Bore code 09 × 5 = 45 mm
ZZ Closure Metal shields, both sides

Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.

SS6309-ZZ specifications

Specification Metric Inch Basis
Bore (d) 45 mm 1.7717 in ISO table for this designation, confirmed by supplier data
Outside diameter (D) 100 mm 3.937 in ISO table for this designation, confirmed by supplier data
Width (B) 25 mm 0.9843 in ISO table for this designation, confirmed by supplier data
Bearing type Deep groove ball bearing Stated by the designation
Seals / shields Metal shields, both sides Stated by the designation
Internal clearance Normal (CN): no clearance code in the designation Stated by the designation
Tolerance class Normal (ISO P0 / ABEC 1): no tolerance-class code Stated by the designation
Material Stainless steel rings and balls Stated by the designation

SS6309-ZZ is a deep groove ball bearing, 45 mm bore × 100 mm OD × 25 mm wide (1.7717 × 3.937 × 0.9843 in). It has metal shields on both sides and stainless steel rings and balls.

The SS6309-ZZ is a stainless steel deep groove ball bearing from the metric 6309 series, featuring double metal shields (ZZ) for protection against contaminants while retaining pre-packed lubrication. The stainless steel construction provides corrosion resistance for demanding environments.
