SS6012-ZZ
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeCouldn't load pickup availability

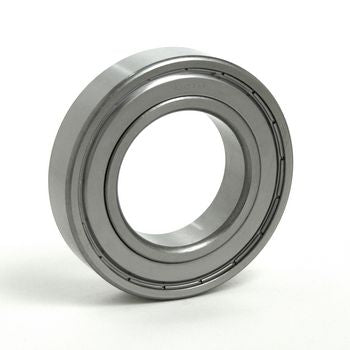

Image is for illustration purposes only.
What SS6012-ZZ means
| Code | Position | Meaning |
|---|---|---|
SS |
Material | Stainless steel rings and balls |
6 |
Type | Deep groove ball bearing |
0 |
Diameter series | Diameter series 0 (extra light): fixes OD and width for the bore (ISO 15) |
12 |
Bore | Bore code 12 × 5 = 60 mm |
ZZ |
Closure | Metal shields, both sides |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
SS6012-ZZ specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 60 mm | 2.3622 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 95 mm | 3.7402 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 18 mm | 0.7087 in | ISO table for this designation, confirmed by supplier data |
| Bearing type | Deep groove ball bearing | Stated by the designation | |
| Seals / shields | Metal shields, both sides | Stated by the designation | |
| Internal clearance | Normal (CN): no clearance code in the designation | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
| Material | Stainless steel rings and balls | Stated by the designation | |
SS6012-ZZ is a deep groove ball bearing, 60 mm bore × 95 mm OD × 18 mm wide (2.3622 × 3.7402 × 0.7087 in). It has metal shields on both sides and stainless steel rings and balls.
The SS6012-ZZ is a stainless steel deep groove ball bearing with double metal shields (ZZ) that provide protection against contaminants while retaining lubrication. This metric series bearing features a 60mm bore diameter and is constructed from corrosion-resistant stainless steel, making it suitable for environments where rust and oxidation are concerns.
Series: SS
Model Number: SS6012 ZZ
Bore/Inner Diameter Inch: 2.3622
Bore/Inner Diameter mm: 60
Outside Diameter Inch: 3.7402
Outside Diameter mm: 95
