SS6010-ZZ
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeRegular price
$139.29 USD
Regular price
Sale price
$139.29 USD
Unit price
per
Couldn't load pickup availability
Bore50 mm
1.9685 in
Outside dia.80 mm
3.1496 in
Width16 mm
0.6299 in
TypeDeep groove ball bearing
SealingMetal shields, both sides
ClearanceNormal
Ships from US partner stock — flat-rate shipping, calculated by weight at checkout

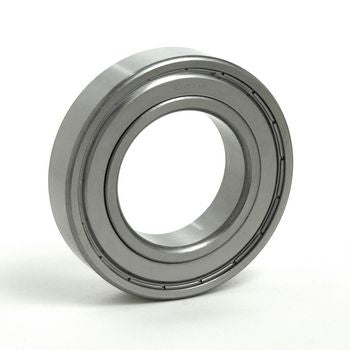

Image is for illustration purposes only.
What SS6010-ZZ means
| Code | Position | Meaning |
|---|---|---|
SS |
Material | Stainless steel rings and balls |
6 |
Type | Deep groove ball bearing |
0 |
Diameter series | Diameter series 0 (extra light): fixes OD and width for the bore (ISO 15) |
10 |
Bore | Bore code 10 × 5 = 50 mm |
ZZ |
Closure | Metal shields, both sides |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
SS6010-ZZ specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 50 mm | 1.9685 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 80 mm | 3.1496 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 16 mm | 0.6299 in | ISO table for this designation, confirmed by supplier data |
| Bearing type | Deep groove ball bearing | Stated by the designation | |
| Seals / shields | Metal shields, both sides | Stated by the designation | |
| Internal clearance | Normal (CN): no clearance code in the designation | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
| Material | Stainless steel rings and balls | Stated by the designation | |
SS6010-ZZ is a deep groove ball bearing, 50 mm bore × 80 mm OD × 16 mm wide (1.9685 × 3.1496 × 0.6299 in). It has metal shields on both sides and stainless steel rings and balls.
The SS6010-ZZ is a stainless steel deep groove ball bearing with double metal shields (ZZ) for protection against contaminants. This metric series bearing features a single row design suitable for radial and light thrust loads in corrosive or washdown environments.
Measurement Type
Metric
Inner Diameter (ID)
50 mm
Outside Diameter (OD)
80 mm
Width
16 mm
Sealing
Double Shielded
Precision Class
ABEC 1 | ISO P0
Ball Material
Stainless Steel
Bearing Type
Single Row Deep Groove Ball Bearing
Other Features
Deep Groove | Stainless Steel | Metal Shields
Component
Assembly
Weight (kg)
0.272
Basic Number
6010
UNSPSC
31171504
