SS6000-ZZ

Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agree
$10.78 USD
$10.78 USD
Sale Sold out
Bore10 mm 0.3937 in
Outside dia.26 mm 1.0236 in
Width8 mm 0.315 in
TypeDeep groove ball bearing
SealingMetal shields, both sides
ClearanceNormal
Ships from US partner stock — flat-rate shipping, calculated by weight at checkout
1 1

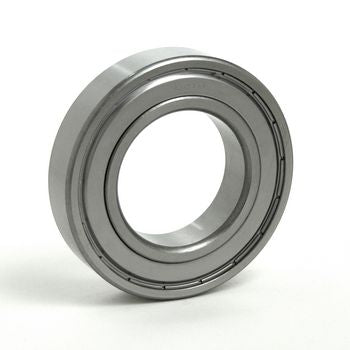

Image is for illustration purposes only.

What SS6000-ZZ means

CodePositionMeaning
SS Material Stainless steel rings and balls
6 Type Deep groove ball bearing
0 Diameter series Diameter series 0 (extra light): fixes OD and width for the bore (ISO 15)
00 Bore Bore code 00 = 10 mm (codes 00, 01, 02 and 03 are fixed at 10, 12, 15 and 17 mm)
ZZ Closure Metal shields, both sides

Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.

SS6000-ZZ specifications

Specification Metric Inch Basis
Bore (d) 10 mm 0.3937 in ISO table for this designation, confirmed by supplier data
Outside diameter (D) 26 mm 1.0236 in ISO table for this designation, confirmed by supplier data
Width (B) 8 mm 0.315 in ISO table for this designation, confirmed by supplier data
Bearing type Deep groove ball bearing Stated by the designation
Seals / shields Metal shields, both sides Stated by the designation
Internal clearance Normal (CN): no clearance code in the designation Stated by the designation
Tolerance class Normal (ISO P0 / ABEC 1): no tolerance-class code Stated by the designation
Material Stainless steel rings and balls Stated by the designation

SS6000-ZZ is a deep groove ball bearing, 10 mm bore × 26 mm OD × 8 mm wide (0.3937 × 1.0236 × 0.315 in). It has metal shields on both sides and stainless steel rings and balls.

The SS6000-ZZ is a metric series deep groove ball bearing manufactured from stainless steel with double metal shields (ZZ) for protection against contamination. This single row design provides reliable radial and light axial load support in compact applications.

SS6000 ZZ Metric Series Stainless Steel Ball Bearing
