RMS8NR
Tier-one manufacturer — brand supplied may vary ✓ Dimensions confirmed by two independent sourcesRegular price
$49.02 USD
Regular price
Sale price
$49.02 USD
Unit price
per
Couldn't load pickup availability
Bore1 in
25.4 mm
Outside dia.2-1/2 in
63.5 mm
Width3/4 in
19.05 mm
TypeInch-dimension radial ball bearing, medium series
SealingOpen
Flat-rate shipping — calculated by weight at checkout

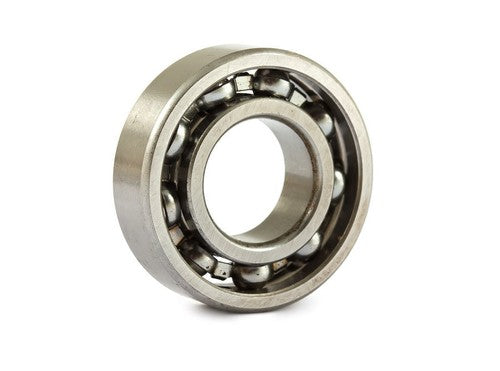

Image is for illustration purposes only.
What RMS8NR means
| Code | Position | Meaning |
|---|---|---|
RMS |
Type | Inch-dimension radial ball bearing, medium series |
8 |
Bore | Bore in eighths of an inch: 8/8 = 1 in |
NR |
Snap ring | Snap-ring groove in the outer ring, with the snap ring fitted |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
RMS8NR specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 25.4 mm | 1 in (1) | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 63.5 mm | 2-1/2 in (2.5) | Two independent catalogue sources agree |
| Width (B) | 19.05 mm | 3/4 in (0.75) | Two independent catalogue sources agree |
| Bearing type | Inch-dimension radial ball bearing, medium series | Stated by the designation | |
| Seals / shields | Open | Supplier catalogue listing | |
| Snap ring | Snap-ring groove in the outer ring, with the snap ring fitted | Stated by the designation | |
RMS8NR is an inch-dimension radial ball bearing, medium series, 1 in bore × 2-1/2 in OD × 3/4 in wide (25.4 × 63.5 × 19.05 mm). It has a snap-ring groove in the outer ring, with the snap ring fitted.
The RMS8 NR is a single row deep groove ball bearing from the RMS series, featuring a snap ring groove and included snap ring for simplified axial location in housing bores. Deep groove ball bearings are versatile radial bearings capable of accommodating both radial and axial loads in both directions.
