RLS8-ZZ
Tier-one manufacturer — brand supplied may vary ✓ Bore checked against the ISO tableCouldn't load pickup availability

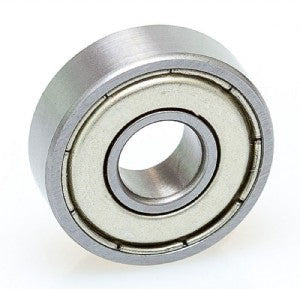

Image is for illustration purposes only.
What RLS8-ZZ means
| Code | Position | Meaning |
|---|---|---|
RLS |
Type | Inch-dimension radial ball bearing, light series |
8 |
Bore | Bore in eighths of an inch: 8/8 = 1 in |
ZZ |
Closure | Metal shields, both sides |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
RLS8-ZZ specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 25.4 mm | 1 in (1) | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 57.15 mm | 2-1/4 in (2.25) | Supplier catalogue listing |
| Width (B) | 15.88 mm | 5/8 in (0.625) | Supplier catalogue listing |
| Bearing type | Inch-dimension radial ball bearing, light series | Stated by the designation | |
| Seals / shields | Metal shields, both sides | Stated by the designation | |
RLS8-ZZ is an inch-dimension radial ball bearing, light series, 1 in bore × 2-1/4 in OD × 5/8 in wide (25.4 × 57.15 × 15.88 mm). It has metal shields on both sides.
The RLS8-ZZ is a deep groove ball bearing from the RLS series, featuring double metal shields (ZZ) on both sides to protect against contamination while allowing for pre-lubricated operation. Deep groove ball bearings are versatile radial bearings capable of handling both radial and axial loads in both directions.
Series: RLS
Model Number: RLS8 ZZ
Bore/Inner Diameter Inch: 1
Bore/Inner Diameter mm: 25.4
Outside Diameter Inch: 2.25
Outside Diameter mm: 57.15
