R4AZZ

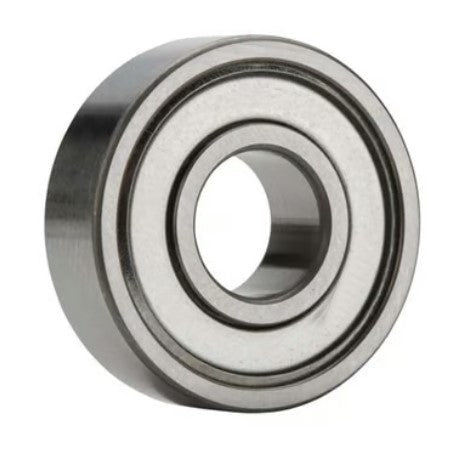

The R4AZZ is a single row radial ball bearing with double metal shields. The double shielded design provides protection from contaminants while retaining lubrication, making it suitable for applications where minimal maintenance access is available.
Single row radial ball bearings are commonly used in electric motors, pumps, gearboxes, and general industrial machinery where radial loads are present. The compact design and sealed construction make these bearings ideal for moderate speed applications in dusty or dirty environments.
R4A ZZ R Series Ball Bearing
For large orders ($2000+) please inquire by email.
Measurement Type
Imperial
Inner Diameter (ID)
1/4 in
Outside Diameter (OD)
15.875 mm / 3/4 in
Width
9/32 in
Sealing
Double Shielded
Precision Class
ABEC 1 | ISO P0
Arrangement
One
Ball Material
Steel
Cage
Steel
Bearing Type
Miniature / Extra Small Ball Bearing
Other Features
Single Row | Deep Groove Ball Bearing | Metal Shields
Component
Assembly
Weight (kg)
0.004
Basic Number
R4A
UNSPSC
31171504
