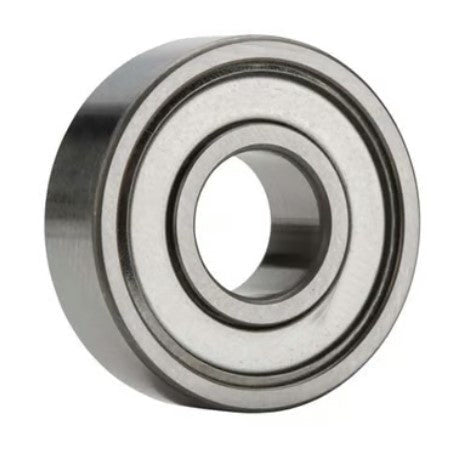

Image is for illustration purposes only.
R14-ZZ
The R14-ZZ is a single row deep groove ball bearing with double metal shields. Deep groove ball bearings are the most common bearing type, featuring deep raceway grooves that allow them to accommodate radial loads and moderate axial loads in both directions.
This bearing type is used in electric motors, pumps, automotive applications, household appliances, and general industrial machinery where protection from contaminants is needed. The double shield configuration provides effective protection against dirt and dust while retaining lubrication.
R14 ZZ R Series Ball Bearing
For large orders ($2000+) please inquire by email.
Measurement Type
Imperial
Inner Diameter (ID)
7 mm / 7/8 in
Outside Diameter (OD)
1 7/8 in
Width
1/2 in
Sealing
Double Shielded
Precision Class
ABEC 1 | ISO P0
Other Features
Single Row | Deep Groove Ball Bearing | Metal Shields
Component
Assembly
Weight (kg)
0.072
Basic Number
R14
UNSPSC
31171504
