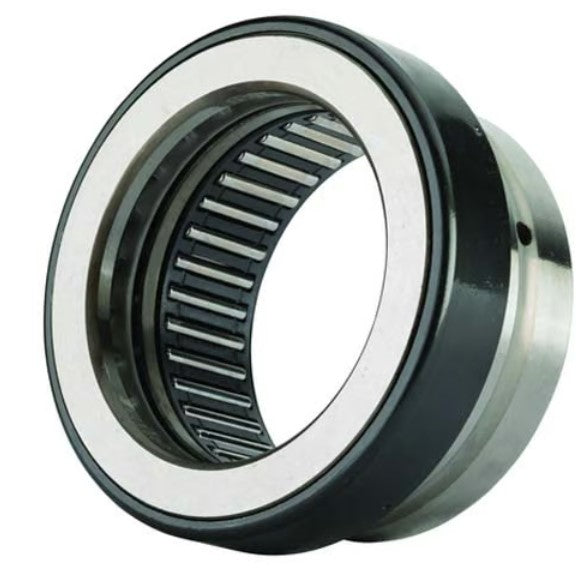

Image is for illustration purposes only.
NKX50Z
The NKX50Z is a needle thrust bearing designed to support axial loads in one direction while maintaining a compact axial profile. This bearing features a single shield (Z suffix) for protection against contaminants and includes needle roller and race way components for efficient load distribution.
Needle thrust bearings are commonly used in automotive transmissions, machine tool spindles, gearboxes, and other applications where space is limited but high axial load capacity is required. The compact design makes them ideal for assemblies requiring minimal axial envelope dimensions.
For large orders ($2000+) please inquire by email.
Measurement Type
Metric
Inner Diameter (ID)
50 mm
Outside Diameter (OD)
62 mm
Width
35 mm
Sealing
Single Shielded
Precision Class
Non Precision
Bearing Type
Needle Thrust Bearings
Other Features
Combined Needle Roller Bearing | Radial and Axial Load Design
Component
Assembly
Weight (kg)
0.28
Basic Number
NKX50
UNSPSC
31171507
