LR5308-2RS
Tier-one manufacturer — brand supplied may vary ✓ Dimensions confirmed by two independent sourcesRegular price
$135.71 USD
Regular price
Sale price
$135.71 USD
Unit price
per
Couldn't load pickup availability
Bore40 mm
1.5748 in
Outside dia.100 mm
3.937 in
Width37 mm
1.4567 in
TypeYoke-type track roller, double row
SealingDouble Sealed
Flat-rate shipping — calculated by weight at checkout

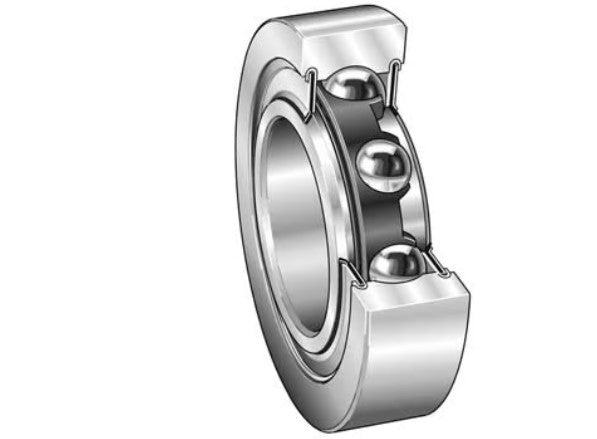

Image is for illustration purposes only.
LR5308-2RS specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 40 mm | 1.5748 in | Two independent catalogue sources agree |
| Outside diameter (D) | 100 mm | 3.937 in | Two independent catalogue sources agree |
| Width (B) | 37 mm | 1.4567 in | Two independent catalogue sources agree |
| Bearing type | Yoke-type track roller, double row | Stated by the designation | |
| Seals / shields | Double Sealed | Supplier catalogue listing | |
LR5308-2RS is a yoke-type track roller, double row, 40 mm bore × 100 mm OD × 37 mm wide (1.5748 × 3.937 × 1.4567 in).
The LR5308-2RS is a track roller bearing featuring double rubber seals (2RS) for protection against contamination. Track rollers are designed to run on tracks or guide rails, incorporating a stud-type mounting configuration with a thick-walled outer ring to withstand radial loads.
LR5308-2RS LR5308NPPU Track Rollers Series Bearing
Measurement Type
Metric
Inner Diameter (ID)
40 mm
Outside Diameter (OD)
100 mm
Width
37 mm
Sealing
Double Sealed
Precision Class
ABEC 1 | ISO P0
Bearing Type
Track Roller
Other Features
Single Row | Deep Groove Ball Bearing | Rubber Seals
Component
Assembly
Weight (kg)
1.2
Basic Number
LR5308
UNSPSC
31171504
