LR5205-2RS
Tier-one manufacturer — brand supplied may vary ✓ Dimensions confirmed by two independent sourcesRegular price
$63.64 USD
Regular price
Sale price
$63.64 USD
Unit price
per
Couldn't load pickup availability
Bore25 mm
0.9843 in
Outside dia.62 mm
2.4409 in
Width20.6 mm
0.811 in
TypeYoke-type track roller, double row
SealingDouble Sealed
Flat-rate shipping — calculated by weight at checkout

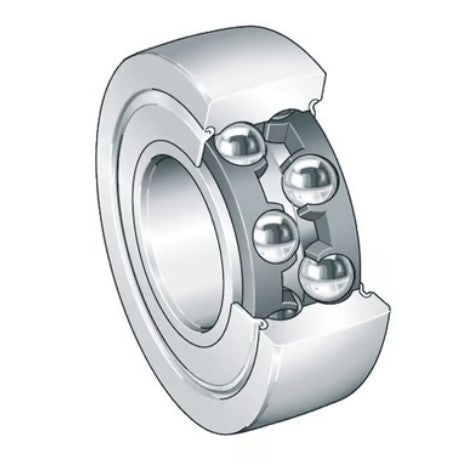

Image is for illustration purposes only.
LR5205-2RS specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 25 mm | 0.9843 in | Two independent catalogue sources agree |
| Outside diameter (D) | 62 mm | 2.4409 in | Two independent catalogue sources agree |
| Width (B) | 20.6 mm | 0.811 in | Two independent catalogue sources agree |
| Bearing type | Yoke-type track roller, double row | Stated by the designation | |
| Seals / shields | Double Sealed | Supplier catalogue listing | |
LR5205-2RS is a yoke-type track roller, double row, 25 mm bore × 62 mm OD × 20.6 mm wide (0.9843 × 2.4409 × 0.811 in).
The LR5205-2RS is a track roller bearing featuring double rubber seals (2RS) for protection against contaminants and lubricant retention. Track roller bearings are designed with thick-walled outer rings to run directly on track surfaces and guide rails.
LR5205-2RS LR5205NPPU Track Rollers Series Bearing
Measurement Type
Metric
Inner Diameter (ID)
25 mm
Outside Diameter (OD)
62 mm
Width
20.6 mm
Sealing
Double Sealed
Precision Class
ABEC 1 | ISO P0
Other Features
Track Roller Bearing | Thick Outer Ring | Radial Load Design
Component
Assembly
Weight (kg)
0.34
Basic Number
LR5205
UNSPSC
31171530
