Image is for illustration purposes only.

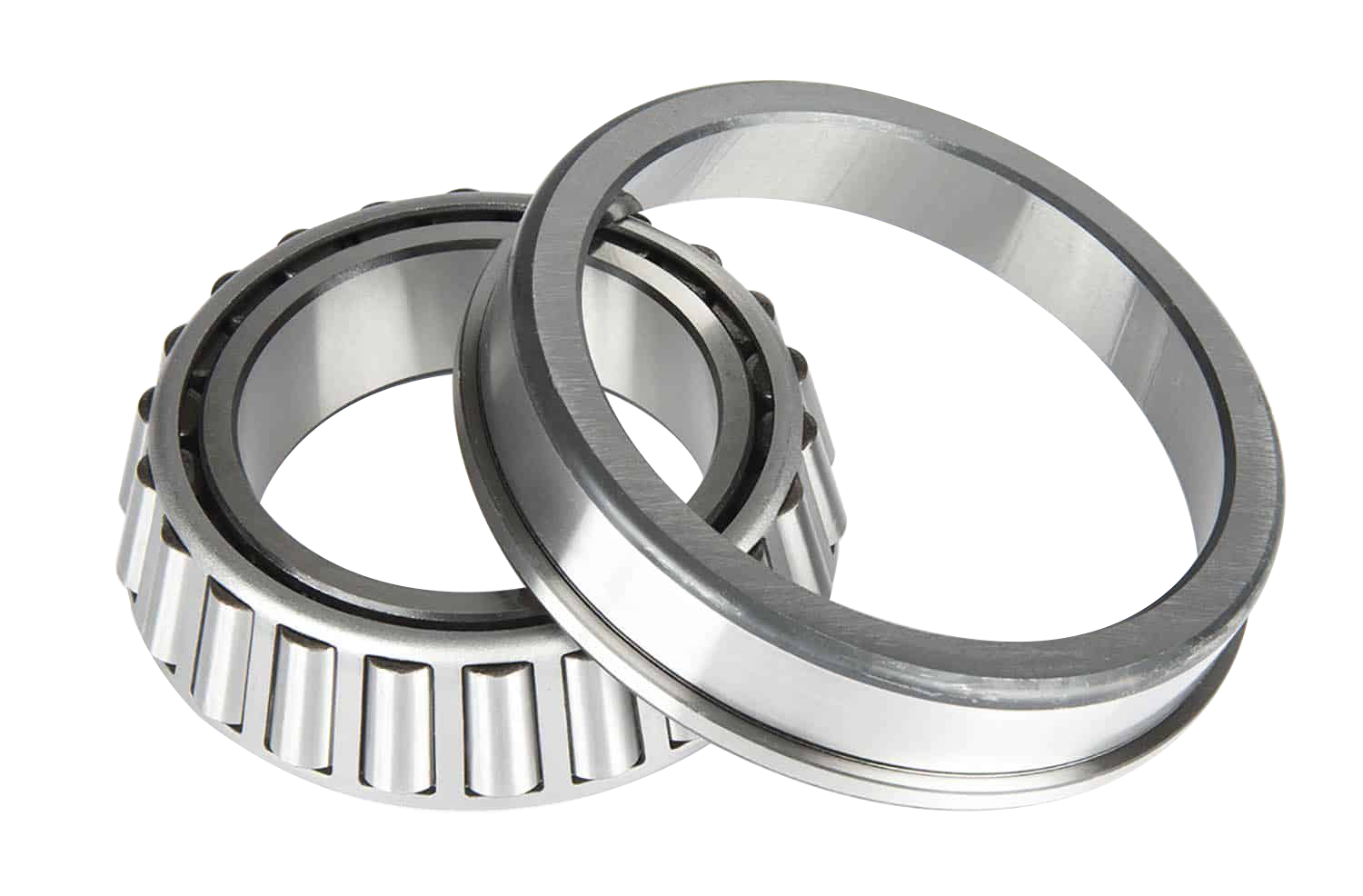

JM515649/JM515610
The JM515649/JM515610 is a tapered roller bearing set consisting of a cone (inner ring with rollers and cage) and cup (outer ring) designed to the inch dimensional standard. Tapered roller bearings use conical rolling elements to handle combined radial and axial loads with high load capacity.
This bearing type is commonly used in automotive wheel hubs, truck axles, agricultural equipment, and industrial gearboxes where heavy radial and thrust loads occur. The matched set configuration ensures proper internal geometry and load distribution for optimal performance.
Interchange / cross reference
DEERE JD9601DEERE JD9156DELCO JM515649PKDELCO JM515610PKGM 9433270GM 9433271GM 9433269HINO 988480104AIHC 65720C91IHC 65721C1IHC 65719C91NEWHOL 147216NEWHOL 147215NTN BWJM515649PKNTN BWJM515610PK
Cross-references are provided as a guide — verify dimensions and fit for your application.
For large orders ($2000+) please inquire by email.
Measurement Type
Metric
Inner Diameter (ID)
80 mm
Outside Diameter (OD)
130 mm
Width
35 mm
Sealing
Open
Precision Class
ISO P0
Arrangement
One
Ball Material
Case Carburized Steel
Bearing Type
Tapered Roller Bearing
Other Features
Single Row | Tapered Roller Bearing
Component
Assembly
Number of Tapered Rows
1
Weight (kg)
1.7
Basic Number
JM515649/JM515610
UNSPSC
31171516
