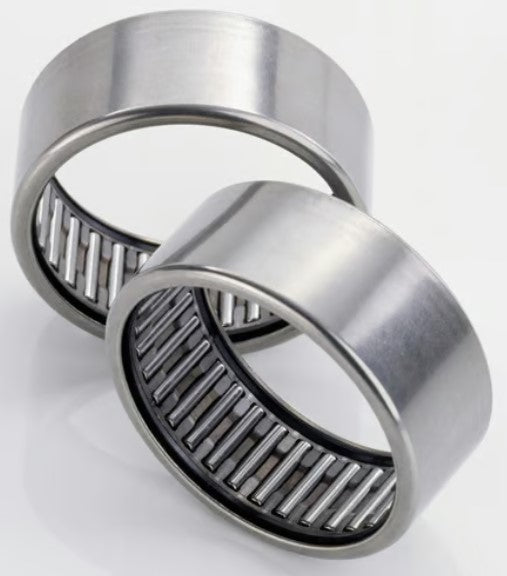

Image is for illustration purposes only.
HK4020;PDL225
The HK4020 is a drawn cup needle roller bearing featuring a thin-walled, drawn outer ring with a high complement of needle rollers. This design provides high load capacity in a compact radial space while maintaining cost-effectiveness for high-volume applications.
Drawn cup needle roller bearings are commonly used in automotive transmissions, power tools, small electric motors, and office equipment where space is limited and radial loads must be supported without an inner ring on hardened shaft surfaces.
HK4020;PDL225 60579035215 Drawn Cup Needle Roller Bearing
For large orders ($2000+) please inquire by email.
Measurement Type
Metric
Inner Diameter (ID)
40 mm
Outside Diameter (OD)
47 mm
Width
20 mm
Sealing
Open
Precision Class
ABEC 1 | ISO P0
Bearing Type
Drawn Cup Needle Roller Bearing
Other Features
Drawn Cup Needle Roller Bearing | Radial Load Design
Component
Roller Assembly with Outer Ring-No Inner Ring
Weight (kg)
0.06
Basic Number
4020
UNSPSC
31171512
