HK4018RS

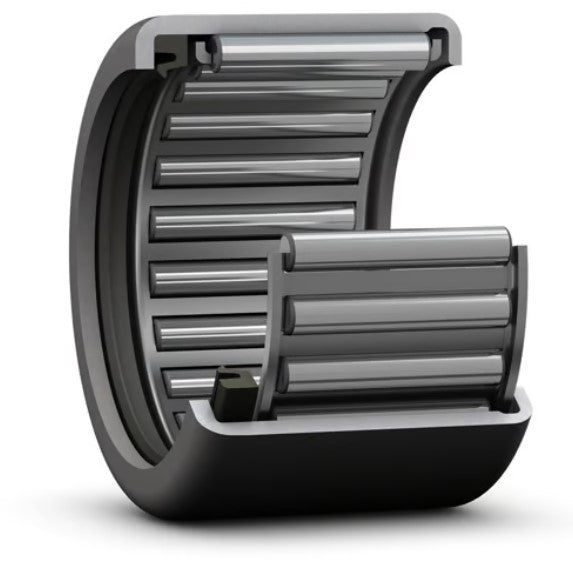

The HK4018RS is a drawn cup needle roller bearing with rubber seals on both sides. This bearing features a thin-walled outer ring with needle rollers guided directly against the raceway, providing high load capacity in a compact radial space while the seals protect against contamination.
Drawn cup needle roller bearings are commonly used in applications such as small motors, gear pumps, agricultural equipment, textile machinery, and transmission components where space is limited and high radial load capacity is required with moderate speed operation.
For large orders ($2000+) please inquire by email.
Measurement Type
Metric
Inner Diameter (ID)
40 mm
Outside Diameter (OD)
72 mm
Width
18 mm
Sealing
Single Sealed
Precision Class
ABEC 1 | ISO P0
Other Features
Drawn Cup Needle Roller Bearing | Radial Load Design | Sealed
Component
Roller Assembly with Outer Ring-No Inner Ring
Weight (kg)
0.045
Basic Number
HK4018
UNSPSC
31171512
