HK2020B
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeCouldn't load pickup availability

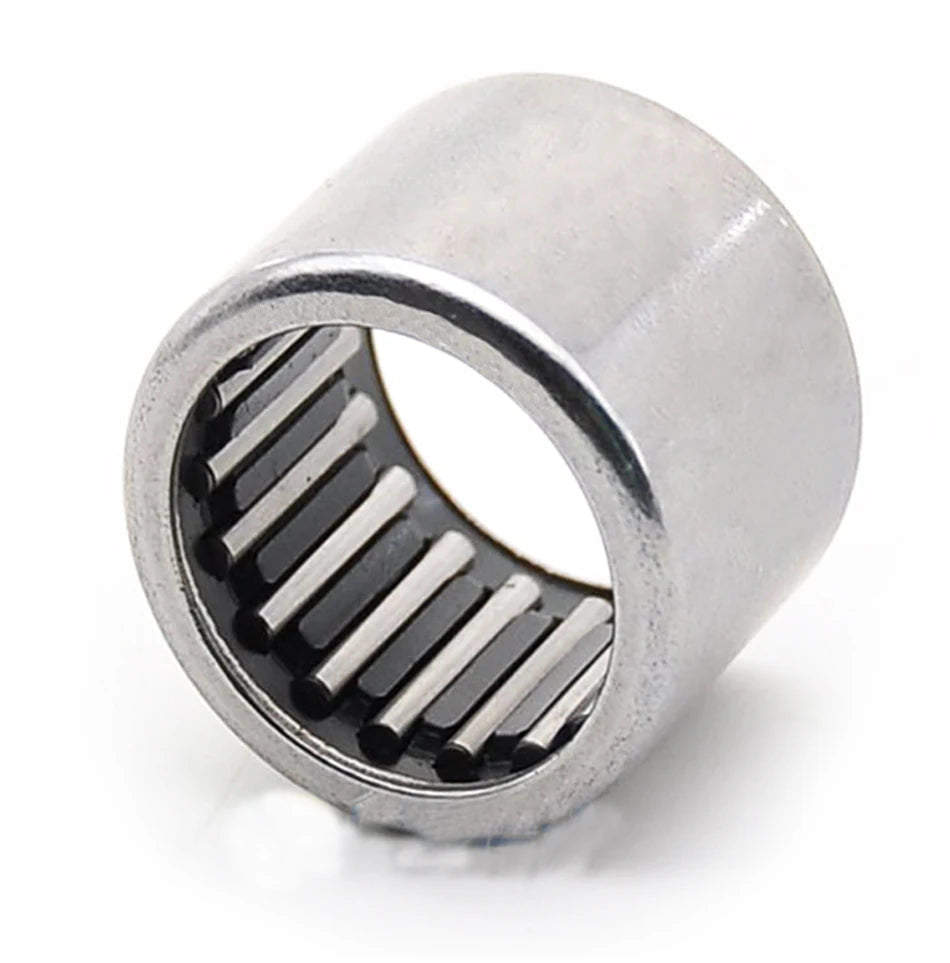

Image is for illustration purposes only.
HK2020B specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 20 mm | 0.7874 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 26 mm | 1.0236 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 20 mm | 0.7874 in | ISO table for this designation, confirmed by supplier data |
| Bearing type | Drawn cup needle roller bearing, open ends | Stated by the designation | |
| Seals / shields | Open | Supplier catalogue listing | |
| Dynamic load rating, C | 15.9 kN | 3,574 lbf |
|---|---|---|
| Limiting speed, grease | 10,600 rpm | |
| Limiting speed, oil | 16,000 rpm | |
Equivalent to / interchanges with
Also listed in manufacturer interchange tables (2): confirm suffix codes before ordering
- SKF HK2020 (SKF Master Interchange)
- INA HK2020 (SKF Master Interchange)
These carry maker-specific suffix codes (cage, lubrication groove, design) that we have not matched one-for-one. The size is the same; check the codes against your application.
Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables
HK2020B is a drawn cup needle roller bearing, open ends, 20 mm bore × 26 mm OD × 20 mm wide (0.7874 × 1.0236 × 0.7874 in). KOYO catalogue values for HK2020B: dynamic load rating C = 15.9 kN, limiting speed 10,600 rpm on grease, 16,000 rpm on oil.
The HK2020B is an open type drawn cup needle roller bearing with a cage to guide and separate the needle rollers. This bearing features a thin-walled outer ring (drawn cup) with a 20 mm bore, 26 mm outer diameter, and 20 mm width, designed for applications with limited radial space.
HK2020B Open Type, Caged Drawn Cup Needle Roller Bearing, 20 mm Inner Diameter x 26 mm Outer Diameter x 20 mm Width
