HK1816.-2RS
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeRegular price
$17.30 USD
Regular price
Sale price
$17.30 USD
Unit price
per
Couldn't load pickup availability
Bore18 mm
0.7087 in
Outside dia.24 mm
0.9449 in
Width16 mm
0.6299 in
TypeDrawn cup needle roller bearing, open ends
SealingContact rubber seals, both sides
Flat-rate shipping — calculated by weight at checkout

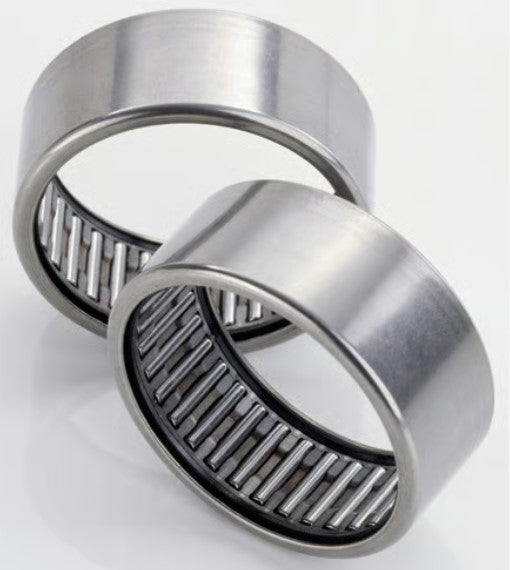

Image is for illustration purposes only.
HK1816.-2RS specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 18 mm | 0.7087 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 24 mm | 0.9449 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 16 mm | 0.6299 in | ISO table for this designation, confirmed by supplier data |
| Bearing type | Drawn cup needle roller bearing, open ends | Stated by the designation | |
| Seals / shields | Contact rubber seals, both sides | Stated by the designation | |
HK1816.-2RS is a drawn cup needle roller bearing, open ends, 18 mm bore × 24 mm OD × 16 mm wide (0.7087 × 0.9449 × 0.6299 in). It has rubber contact seals on both sides.
The HK1816.2RS is a drawn cup needle roller bearing with double rubber seals (2RS) on both sides. This sealed design provides protection against contaminants and retains lubrication for extended service life in harsh environments.
Measurement Type
Metric
Inner Diameter (ID)
18 mm
Outside Diameter (OD)
24 mm
Width
16 mm
Sealing
Double Sealed
Precision Class
ABEC 1 | ISO P0
Other Features
Drawn Cup Needle Roller Bearing | Radial Load Design | Sealed
Component
Roller Assembly with Outer Ring-No Inner Ring
Weight (kg)
0.018
Basic Number
HK1816
UNSPSC
31171512
