HK1416.-2RS
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeRegular price
$15.26 USD
Regular price
Sale price
$15.26 USD
Unit price
per
Couldn't load pickup availability
Bore14 mm
0.5512 in
Outside dia.20 mm
0.7874 in
Width16 mm
0.6299 in
TypeDrawn cup needle roller bearing, open ends
SealingContact rubber seals, both sides
Flat-rate shipping — calculated by weight at checkout

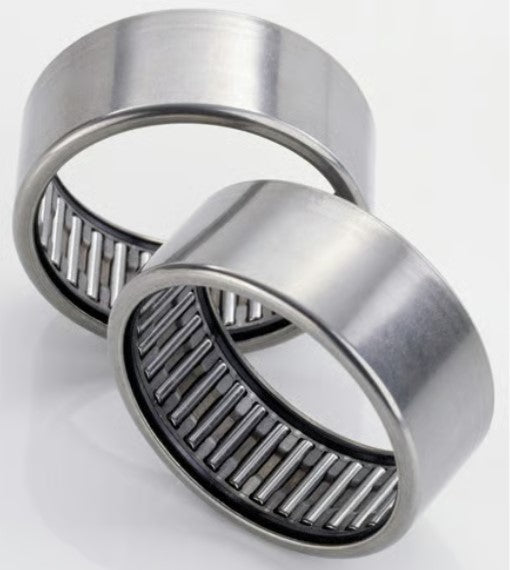

Image is for illustration purposes only.
HK1416.-2RS specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 14 mm | 0.5512 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 20 mm | 0.7874 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 16 mm | 0.6299 in | ISO table for this designation, confirmed by supplier data |
| Bearing type | Drawn cup needle roller bearing, open ends | Stated by the designation | |
| Seals / shields | Contact rubber seals, both sides | Stated by the designation | |
HK1416.-2RS is a drawn cup needle roller bearing, open ends, 14 mm bore × 20 mm OD × 16 mm wide (0.5512 × 0.7874 × 0.6299 in). It has rubber contact seals on both sides.
The HK1416.2RS is a drawn cup needle roller bearing with double seals and a cage to maintain roller spacing. This bearing features a thin-walled drawn cup outer ring that enables compact design in applications with limited radial space, while the double seals provide protection against contamination and lubricant retention.
Measurement Type
Metric
Inner Diameter (ID)
14 mm
Outside Diameter (OD)
20 mm
Width
16 mm
Sealing
Double Sealed
Precision Class
ISO P0
Cage
Caged
Other Features
Drawn Cup Needle Roller Bearing | Radial Load Design | Sealed
Component
Roller Assembly with Outer Ring-No Inner Ring
Weight (kg)
0.014
Basic Number
HK1416
UNSPSC
31171512
