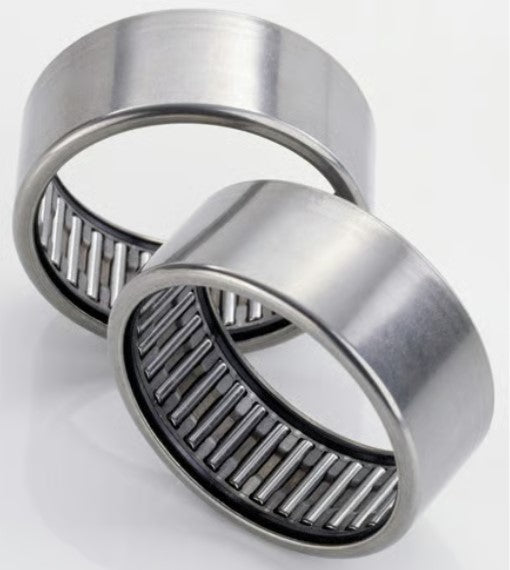

Image is for illustration purposes only.
HK1216.2RS.AS1
The HK1216.2RS.AS1 is a drawn cup needle roller bearing with a caged needle roller complement, double seals, and an oil hole for supplemental lubrication. This bearing features a 12 mm bore, 16 mm outer diameter, and 16 mm width, with integral seals on both sides to retain lubrication and exclude contaminants.
Drawn cup needle roller bearings are used in applications with limited radial space where high load capacity is required, such as transmissions, small engines, connecting rod assemblies, and pivot points in machinery. The oil hole design allows for relubrication in service while maintaining seal protection.
For large orders ($2000+) please inquire by email.
Measurement Type
Metric
Inner Diameter (ID)
12 mm
Outside Diameter (OD)
18 mm
Width
16 mm
Sealing
Double Sealed
Precision Class
ABEC 1 | ISO P0
Cage
Caged
Bearing Type
Roller Bearings
Other Features
Drawn Cup Needle Roller Bearing | Radial Load Design | Sealed
Component
Roller Assembly with Outer Ring-No Inner Ring
Weight (kg)
0.011
Basic Number
HK1216
UNSPSC
31171512
