HK0912;PDL225

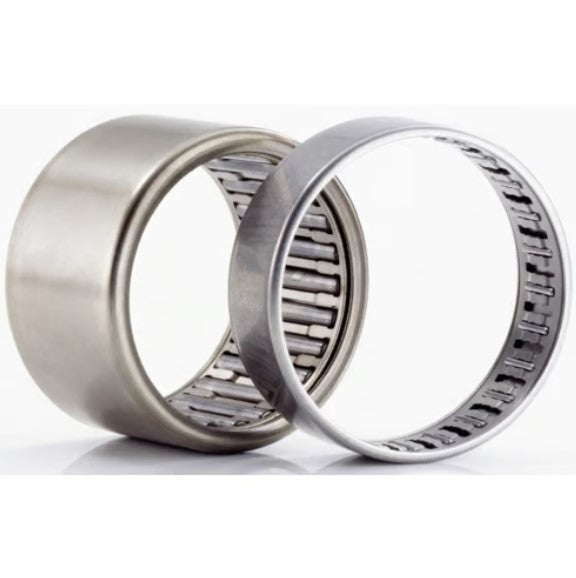

Drawn cup needle roller bearings are compact radial bearings with a thin-walled outer ring and small diameter cylindrical rollers. The drawn cup design provides a very high load carrying capacity in minimal radial space, making them ideal for applications where space is limited.
These bearings are commonly used in automotive components, power tools, small electric motors, and general industrial machinery where high radial loads must be accommodated in constrained envelope dimensions. They require a hardened and ground shaft as the inner raceway.
HK0912;PDL225 60579023077 Drawn Cup Needle Roller Bearing
For large orders ($2000+) please inquire by email.
Measurement Type
Metric
Inner Diameter (ID)
9 mm
Outside Diameter (OD)
13 mm
Width
12 mm
Sealing
Open
Precision Class
ABEC 1 | ISO P0
Ball Material
Needle Rollers
Bearing Type
Drawn Cup Needle Roller Bearing
Other Features
Drawn Cup Needle Roller Bearing | Radial Load Design
Component
Roller Assembly with Outer Ring-No Inner Ring
Weight (kg)
0.005
Basic Number
HK0912
UNSPSC
31171512
