AXK80105
Tier-one manufacturer — brand supplied may vary ✓ Bore checked against the ISO tableRegular price
$25.44 USD
Regular price
Sale price
$25.44 USD
Unit price
per
Couldn't load pickup availability
Bore80 mm
3.1496 in
Outside dia.105 mm
4.1339 in
Height4 mm
0.1575 in
TypeNeedle roller thrust cage assembly
SealingOpen
Ships from US partner stock — flat-rate shipping, calculated by weight at checkout

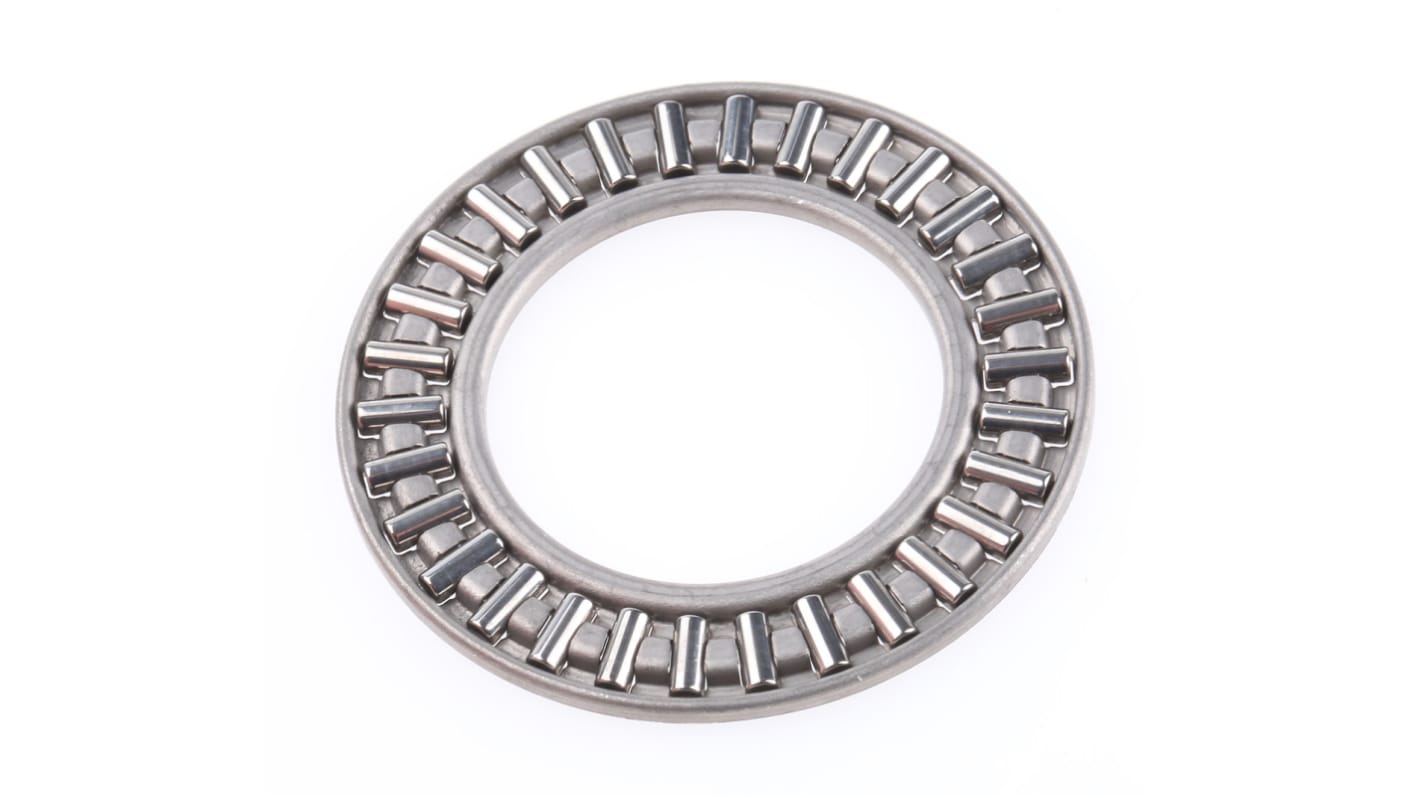

Image is for illustration purposes only.
AXK80105 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 80 mm | 3.1496 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 105 mm | 4.1339 in | ISO table for this designation, confirmed by supplier data |
| Height (H) | 4 mm | 0.1575 in | Supplier catalogue listing |
| Bearing type | Needle roller thrust cage assembly | Stated by the designation | |
| Seals / shields | Open | Supplier catalogue listing | |
| Cage | Sheet metal | Supplier catalogue listing | |
AXK80105 is a needle roller thrust cage assembly, 80 mm bore × 105 mm OD × 4 mm wide (3.1496 × 4.1339 × 0.1575 in).
AXK80105 is a needle thrust bearing designed to support axial loads in one direction while maintaining a compact axial profile. These bearings use cylindrical needle rollers to achieve high load capacity in minimal space.
Measurement Type
Metric
Inner Diameter (ID)
80 mm
Outside Diameter (OD)
105 mm
Width
4 mm
Sealing
Open
Precision Class
Non Precision
Cage
Sheet metal
Bearing Type
Needle Thrust Bearings
Other Features
Needle Roller Thrust Bearing | Axial Load Design
Component
Roller Assembly Only
Weight (kg)
0.05
Basic Number
AXK80105
UNSPSC
31171507
