AXK2542

Tier-one manufacturer — brand supplied may vary ✓ Bore checked against the ISO table
$4.93 USD
$4.93 USD
Sale Sold out
Bore25 mm 0.9843 in
Outside dia.42 mm 1.6535 in
Height2 mm 0.0787 in
TypeNeedle roller thrust cage assembly
SealingOpen
Ships from US partner stock — flat-rate shipping, calculated by weight at checkout

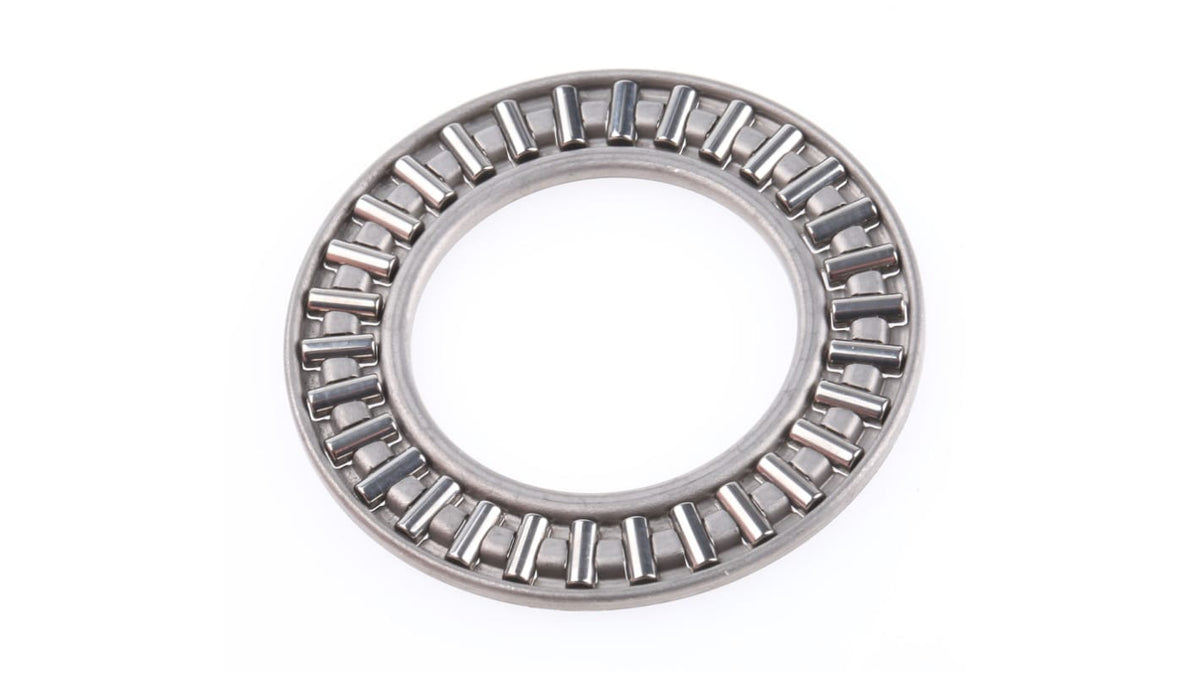

  • AXK2542 Needle Thrust Bearings
1 1

Image is for illustration purposes only.

AXK2542 specifications

Specification Metric Inch Basis
Bore (d) 25 mm 0.9843 in ISO table for this designation, confirmed by supplier data
Outside diameter (D) 42 mm 1.6535 in ISO table for this designation, confirmed by supplier data
Height (H) 2 mm 0.0787 in Supplier catalogue listing
Bearing type Needle roller thrust cage assembly Stated by the designation
Seals / shields Open Supplier catalogue listing
Reference ratings: KOYO AXK2542 catalogue values. Ratings differ slightly between makers; the brand we ship may vary.
Dynamic load rating, C14.3 kN3,215 lbf
Static load rating, C056.8 kN12,769 lbf

AXK2542 is a needle roller thrust cage assembly, 25 mm bore × 42 mm OD × 2 mm wide (0.9843 × 1.6535 × 0.0787 in). KOYO catalogue values for AXK2542: dynamic load rating C = 14.3 kN, static C0 = 56.8 kN.
