AS6085

Tier-one manufacturer — brand supplied may vary ✓ Bore checked against the ISO table
$5.16 USD
$5.16 USD
Sale Sold out
Bore60 mm 2.3622 in
Outside dia.85 mm 3.3465 in
Height1 mm 0.0394 in
TypeNeedle roller thrust washer
SealingOpen
Ships from US partner stock — flat-rate shipping, calculated by weight at checkout
  • AS6085 Needle Thrust Bearings
1 1

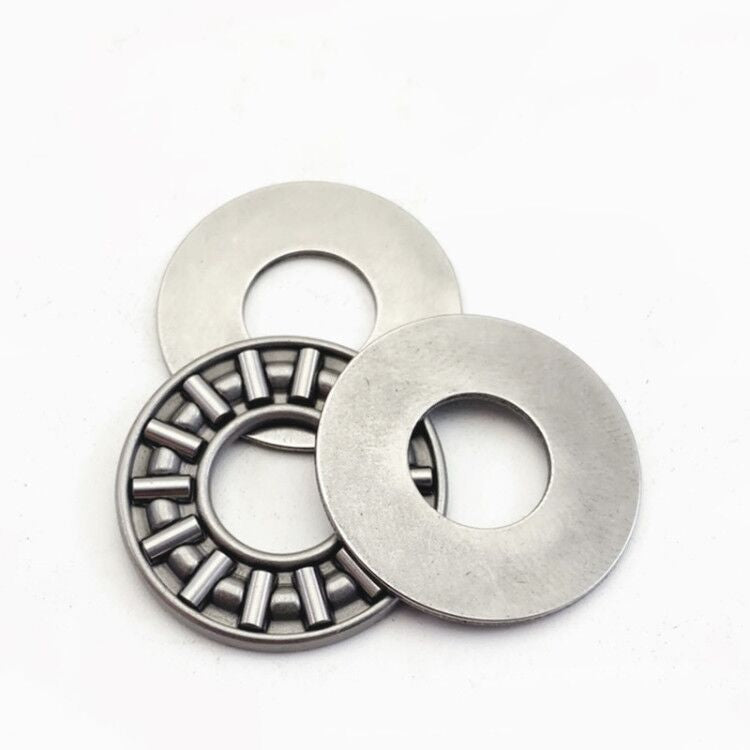

Image is for illustration purposes only.

AS6085 specifications

Specification Metric Inch Basis
Bore (d) 60 mm 2.3622 in ISO table for this designation, confirmed by supplier data
Outside diameter (D) 85 mm 3.3465 in ISO table for this designation, confirmed by supplier data
Height (H) 1 mm 0.0394 in Supplier catalogue listing
Bearing type Needle roller thrust washer Stated by the designation
Seals / shields Open Supplier catalogue listing

AS6085 is a needle roller thrust washer, 60 mm bore × 85 mm OD × 1 mm wide (2.3622 × 3.3465 × 0.0394 in).

AS6085 is a needle thrust bearing designed to support axial loads in compact spaces. Needle thrust bearings use cylindrical rollers with a length-to-diameter ratio that allows for high load capacity in minimal axial space.

Related sizes & variants

  • AS2035 · 20×35×1 mm · Open
  • AS6590 · 65×90×1 mm · Open
  • AS7095 · 70×95×1 mm · Open
  • AS85110 · 85×110×1 mm · Open
  • AS4060 · 40×60×1 mm · Open
  • AS4565 · 45×65×1 mm · Open
  • AS5070 · 50×70×1 mm · Open
  • AS75100 · 75×100×1 mm · Open
