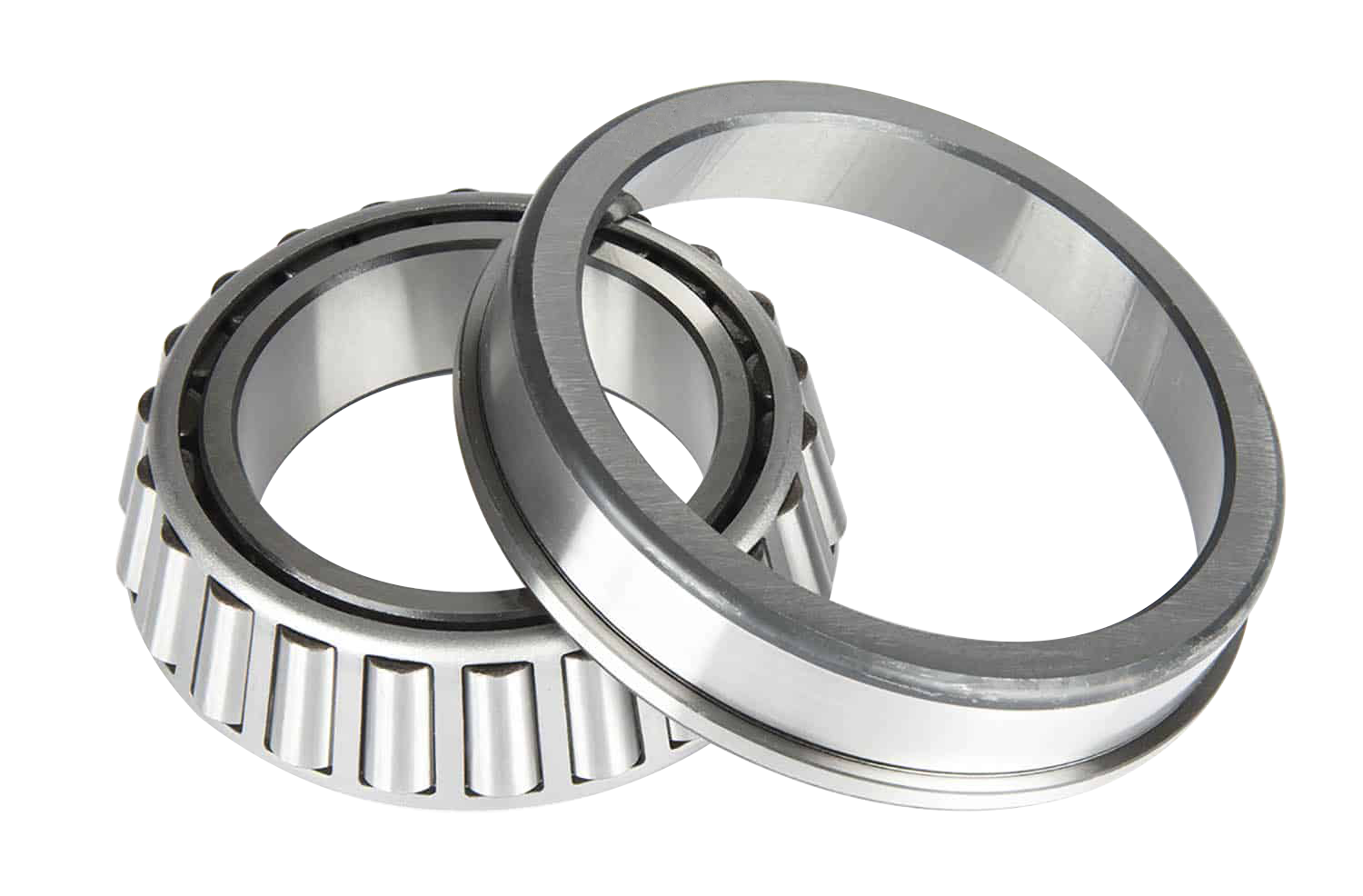

Image is for illustration purposes only.
9380/9321
The 9380/9321 is a tapered roller bearing set consisting of a cone (inner ring with rollers and cage) and cup (outer ring). This single row design provides radial and thrust load capacity in one direction through its tapered raceway geometry.
Tapered roller bearing sets are commonly used in wheel hubs, gearboxes, and differentials in automotive, agricultural, and industrial equipment where combined loads and precise shaft positioning are required. The separable design allows for adjustment of bearing clearance during installation.
Interchange / cross reference
ARAMCO 1331694500ARAMCO 1331694600CHICAGO RAWHIDE BR9321CHICAGO RAWHIDE BR9380
Cross-references are provided as a guide — verify dimensions and fit for your application.
For large orders ($2000+) please inquire by email.
Measurement Type
Imperial
Inner Diameter (ID)
3 in
Outside Diameter (OD)
6 3/4 in
Width
1 15/16 in
Sealing
Open
Precision Class
ISO P0
Arrangement
One
Ball Material
Case carburized steel
Bearing Type
Tapered Roller Bearing
Other Features
Single Row | Tapered Roller Bearing
Component
Assembly
Assembly Components
9380 (1) | 9321 (1)
Number of Tapered Rows
1
Weight (kg)
5
Basic Number
9380/9321
UNSPSC
31171516
