88016

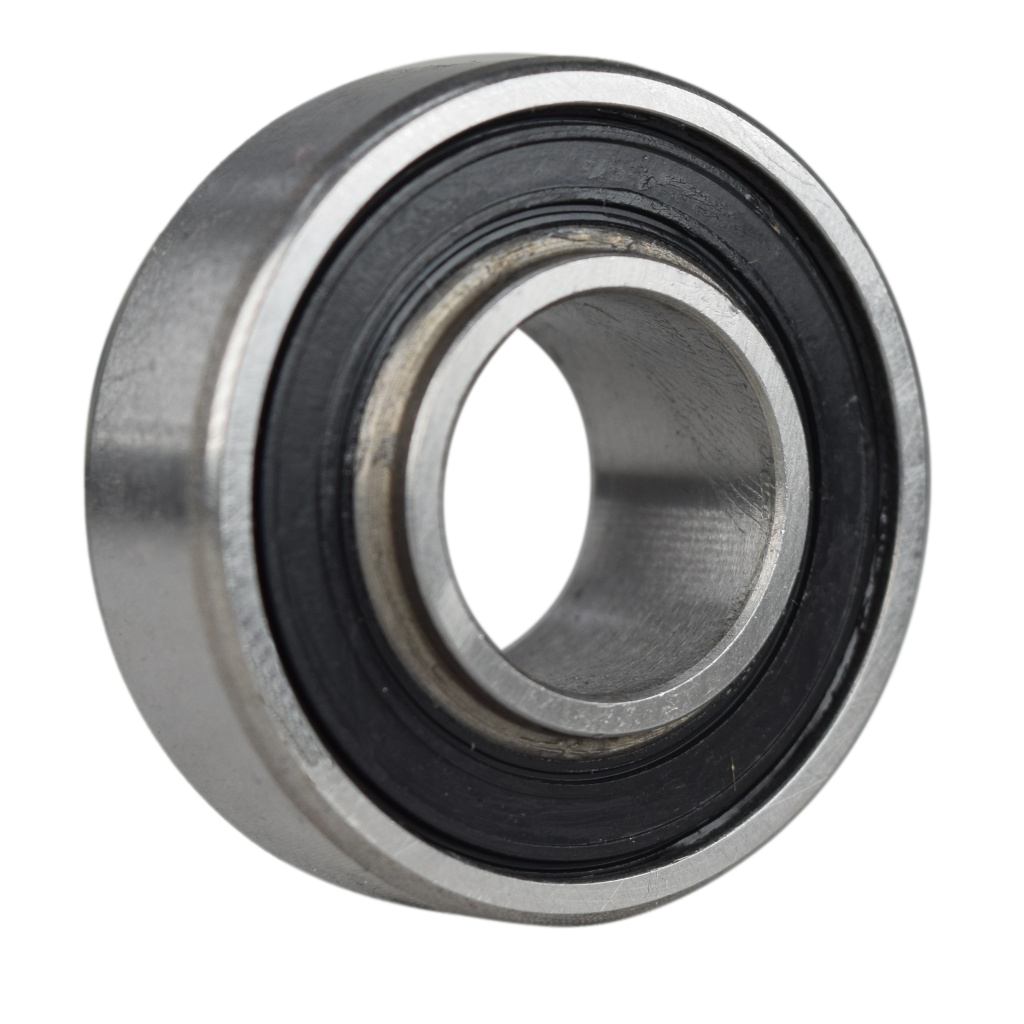

88016 RADIAL BALL BEARING ; NON RETURNABLE 16MM ID 35MM

Single Row Ball Bearing; 16MM Bore; 35MM Outside Diameter; 11MM Outer Race Width; 2 Seals; ABEC 1 | ISO P0; No Filling Slot; No Snap Ring; C0-Medium Internal Clearance; Steel Cage

Weight/Kilogram: 0.04

UNSPSC: 31171504

EAN: 4547359590333

Enclosure: 2 Seals

Precision Class: ABEC 1 | ISO P0

Maximum Capacity/Filling Slot: No

Rolling Element: Ball Bearing

Snap Ring: No

Internal Special Features: Extended Inner Ring

Cage Material: Steel

Enclosure Type: Contact Seal

Internal Clearance: C0-Medium

Inch Metric: Metric

Other Features: Deep Groove | Felt Seal | Shell Alvania Prelubricated

Category BDI: Single Row Ball Bearing

Harmonized Tariff Code: 8482.10.50.68

Noun: Bearing

Keyword String: Ball

Weight/LBS: 0.114

Long Description: Single Row Ball Bearing; 16MM Bore; 35MM Outside Diameter; 11MM Outer Race Width; 2 Seals; ABEC 1 | ISO P0; No Filling Slot; No Snap Ring; C0-Medium Internal Clearance; Steel Cage

Outer Race Width: 0.433 Inch | 11 Millimeter

Outside Diameter: 1.378 Inch | 35 Millimeter

Inner Race Width: 0.567 Inch | 14.4 Millimeter

Bore: 0.63 Inch | 16 Millimeter

For large orders ($2000+) please inquire by email.
