755/752

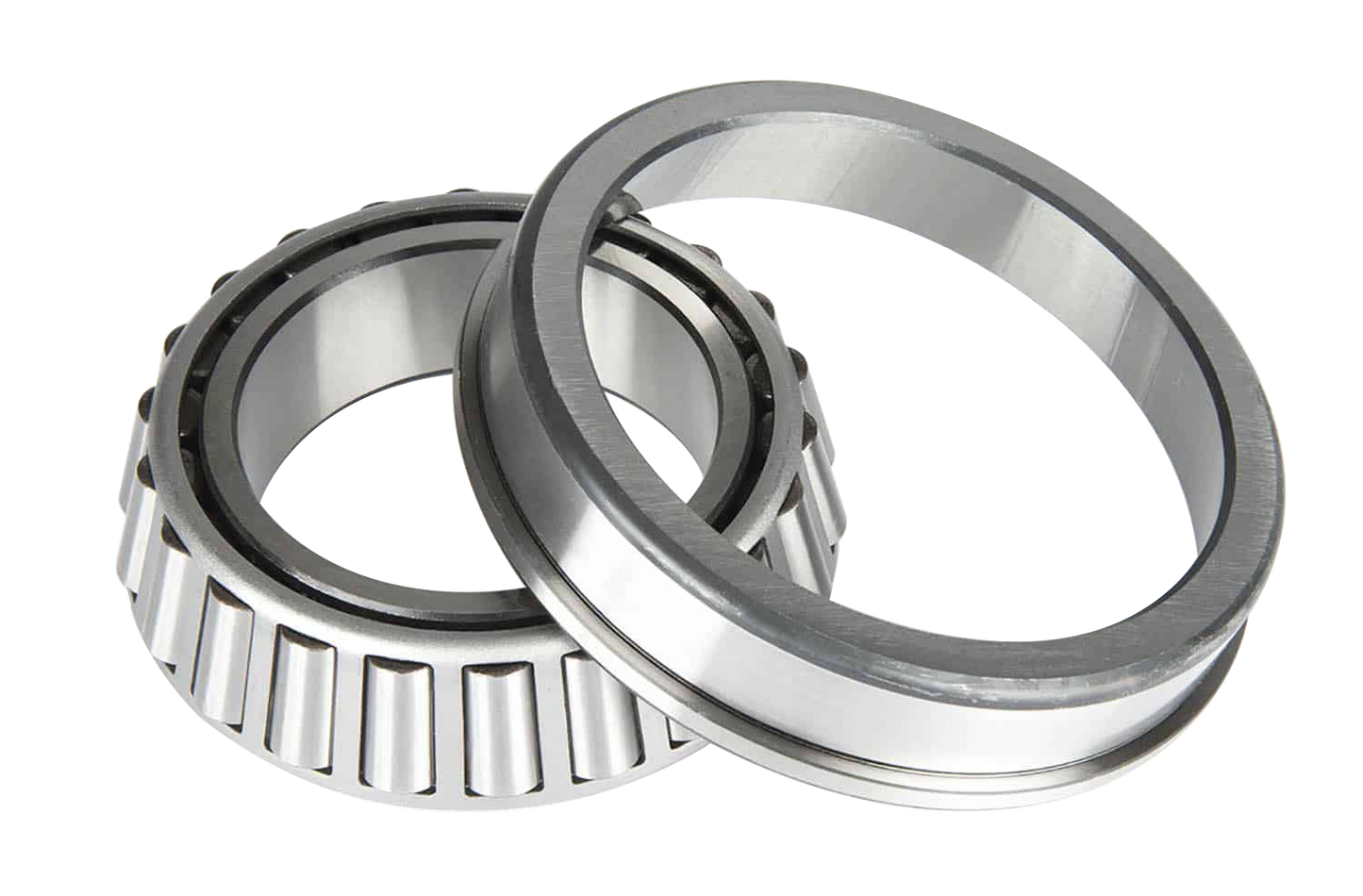

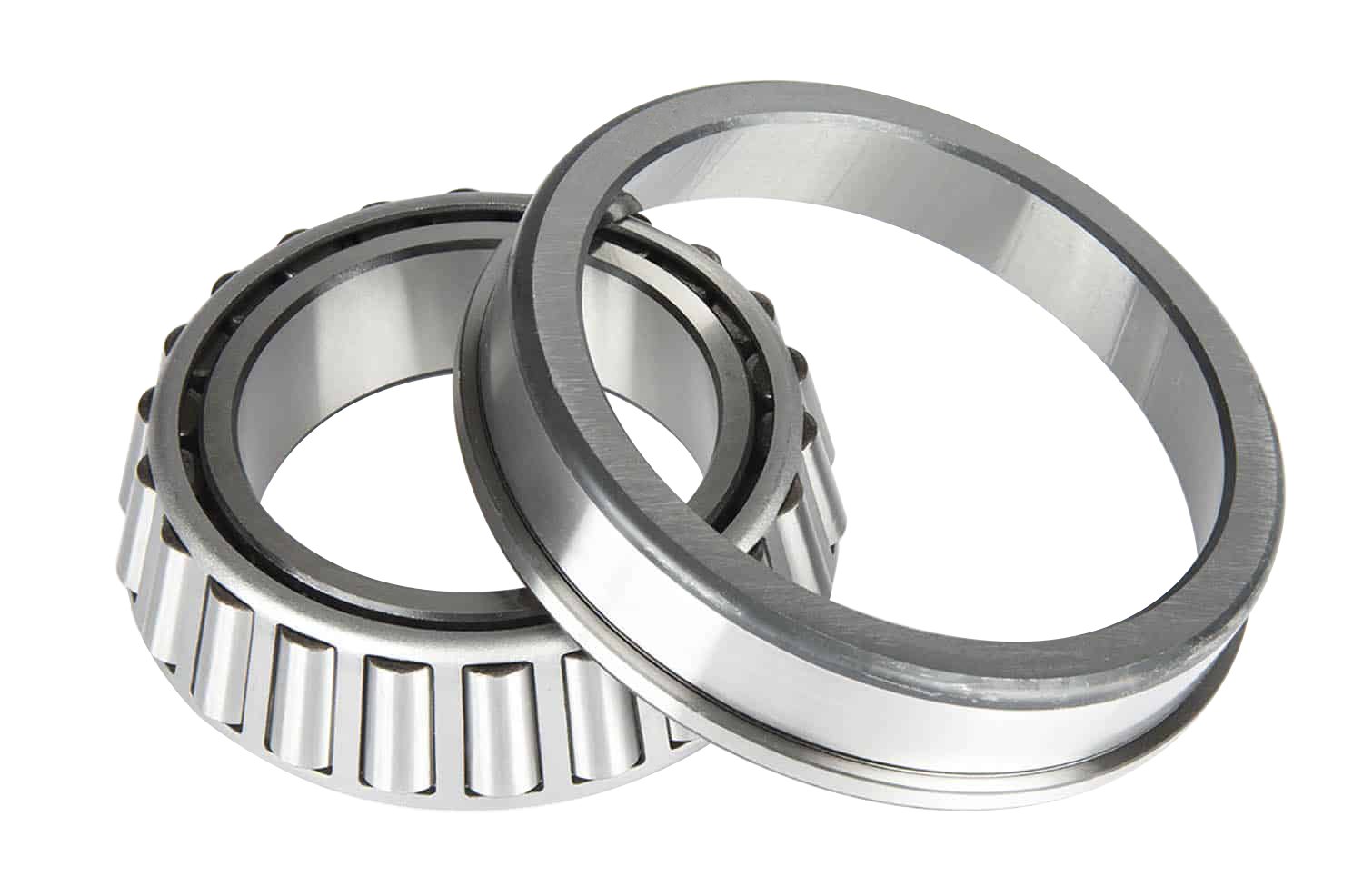

The 755/752 is a tapered roller bearing set consisting of a cone (inner ring) and cup (outer ring) assembly. This single row design features tapered raceways that allow the bearing to handle combined radial and axial loads efficiently.
Tapered roller bearing sets are commonly used in industrial gearboxes, heavy machinery, conveyor systems, and other applications requiring reliable performance under combined loading conditions. The separable design allows for easy installation and precise adjustment of bearing clearance.
Interchange / cross reference
AUSTIN 301SN337FALK 921309GM 456450JEFREY 122897TIMKEN 755-752
Cross-references are provided as a guide — verify dimensions and fit for your application.
For large orders ($2000+) please inquire by email.
Measurement Type
Imperial
Inner Diameter (ID)
3 in
Outside Diameter (OD)
6.375 mm / 6 3/8 in
Width
1.9 mm / 1 7/8 in
Sealing
Open
Precision Class
ISO P0
Arrangement
One
Ball Material
Case carburized steel
Bearing Type
Tapered Roller Bearing
Other Features
Single Row | Tapered Roller Bearing
Component
Assembly
Number of Tapered Rows
1
Weight (kg)
4.7
Basic Number
755/752
UNSPSC
31171516
