6915LLU
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeCouldn't load pickup availability

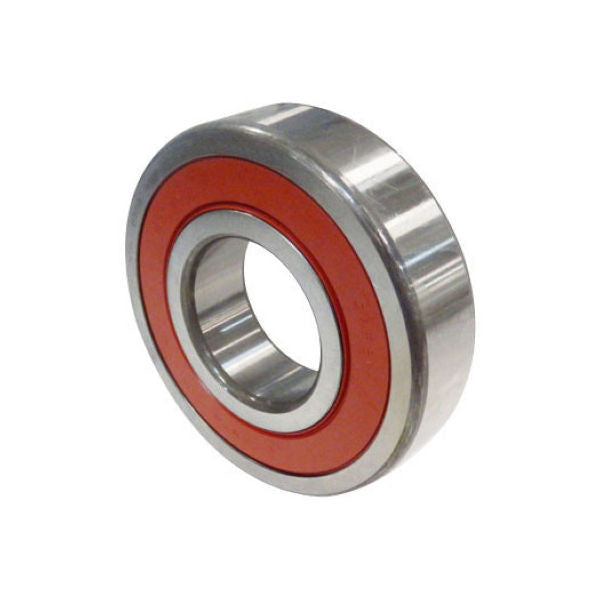

Image is for illustration purposes only.
What 6915LLU means
| Code | Position | Meaning |
|---|---|---|
6 |
Type | Deep groove ball bearing |
9 |
Diameter series | Diameter series 9 (very thin): fixes OD and width for the bore (ISO 15) |
15 |
Bore | Bore code 15 × 5 = 75 mm |
LLU |
Closure | Contact rubber seals, both sides |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
6915LLU specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 75 mm | 2.9528 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 105 mm | 4.1339 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 16 mm | 0.6299 in | ISO table for this designation, confirmed by supplier data |
| Bearing type | Deep groove ball bearing | Stated by the designation | |
| Seals / shields | Contact rubber seals, both sides | Stated by the designation | |
| Internal clearance | Normal (CN): no clearance code in the designation | Stated by the designation | |
| Cage | Steel | Supplier catalogue listing | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
| Material | Steel | Supplier catalogue listing | |
| Dynamic load rating, C | 26.96 kN | 6,061 lbf |
|---|---|---|
| Static load rating, C0 | 22.69 kN | 5,101 lbf |
| Limiting speed, grease | 3,500 rpm | |
Equivalent to / interchanges with
| Brand | Part number | Basis |
|---|---|---|
| SKF | 6915 2RSH | Brand suffix convention for this ISO size |
| TIMKEN | 6915 2RS | Brand suffix convention for this ISO size |
| FAG | 6915 2RSR | Brand suffix convention for this ISO size |
| NSK | 6915 DDU | Brand suffix convention for this ISO size |
| NTN | 6915 LLU | Brand suffix convention for this ISO size |
| KOYO | 6915 2RS | Brand suffix convention for this ISO size |
| NACHI | 6915 2NSE | Brand suffix convention for this ISO size |
Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables
6915LLU is a deep groove ball bearing, 75 mm bore × 105 mm OD × 16 mm wide (2.9528 × 4.1339 × 0.6299 in). It has rubber contact seals on both sides. Other makers sell the same size as SKF 6915 2RSH, TIMKEN 6915 2RS, FAG 6915 2RSR, NSK 6915 DDU. NTN catalogue values for 6915LLU: dynamic load rating C = 26.96 kN, static C0 = 22.69 kN, limiting speed 3,500 rpm on grease.
The 6915LLU is a deep groove ball bearing with contact rubber seals on both sides, featuring a 75mm bore diameter, 105mm outside diameter, and 16mm width. The double-seal design provides protection against contaminants while retaining lubrication for extended service life.
