Image is for illustration purposes only.

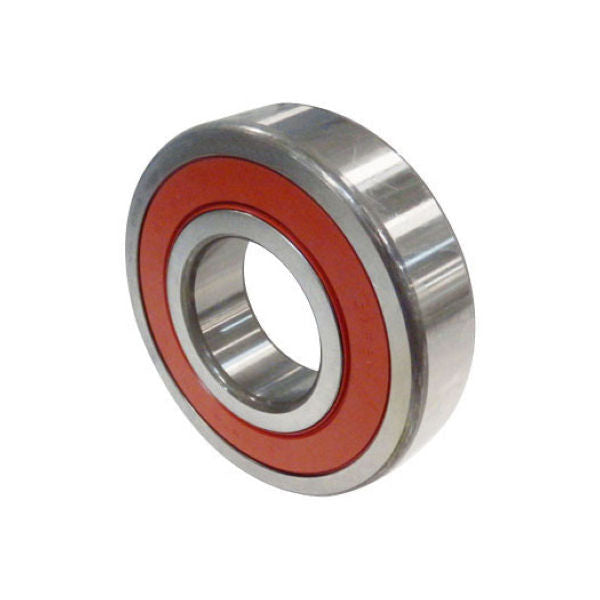

6822LLU
The 6822LLU is a deep groove ball bearing from the 68 series with a 110mm bore diameter. It features contact rubber seals on both sides to protect against contaminants while retaining lubrication.
Deep groove ball bearings are versatile radial bearings suitable for high-speed operation in electric motors, gearboxes, pumps, and general industrial machinery where reliable performance and sealed protection are required.
For large orders ($2000+) please inquire by email.
Measurement Type
Metric
Inner Diameter (ID)
110 mm
Outside Diameter (OD)
140 mm
Width
16 mm
Sealing
Double Sealed
Precision Class
ABEC 1 | ISO P0
Arrangement
One
Ball Material
High Carbon Chrome Steel
Cage
Steel
Series
68
Bearing Type
Deep groove ball bearing
Other Features
Single Row | Deep Groove Ball Bearing
Component
Assembly
Weight (kg)
0.51
Basic Number
6822
UNSPSC
31171504
