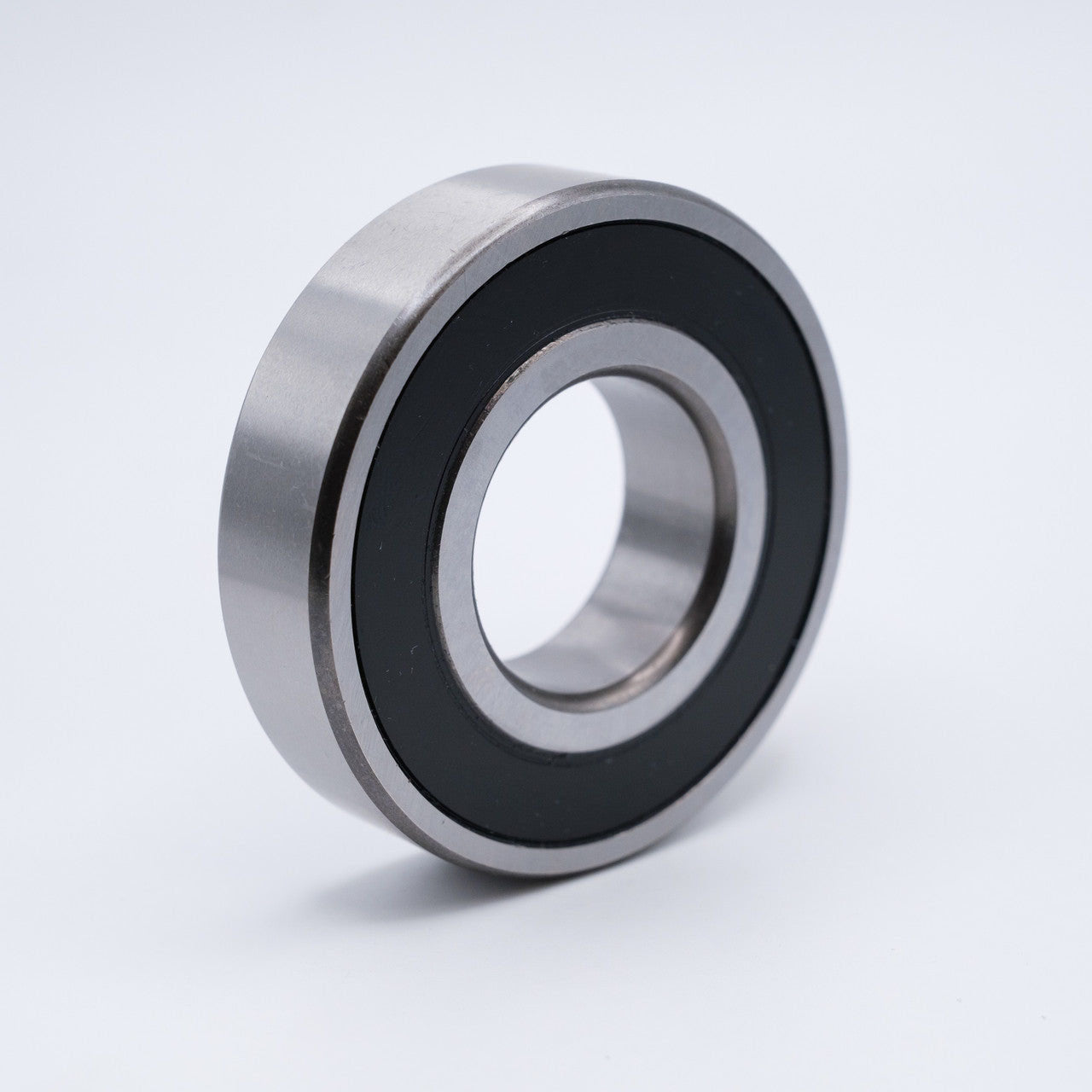

Image is for illustration purposes only.
6805-2RS
The 6805-2RS is a deep groove ball bearing with a 25mm bore diameter, 37mm outside diameter, and 7mm width. It features contact rubber seals on both sides (2RS designation) to protect against contaminants and retain lubrication.
Deep groove ball bearings are versatile components suitable for applications requiring high speed operation and low friction. Common uses include electric motors, pumps, conveyor systems, automotive components, and general industrial machinery where radial and light axial loads are present.
6805 2RS 6800 (61800) Series Ball Bearing
For large orders ($2000+) please inquire by email.
Measurement Type
Metric
Inner Diameter (ID)
25 mm
Outside Diameter (OD)
37 mm
Width
7 mm
Sealing
Double Sealed
Precision Class
ABEC 1 | ISO P0
Series
68
Bearing Type
Deep groove ball bearing
Other Features
Single Row | Deep Groove Ball Bearing | Rubber Seals
Component
Assembly
Weight (kg)
0.022
Basic Number
6805
UNSPSC
31171504
