6803-ZZ
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeCouldn't load pickup availability

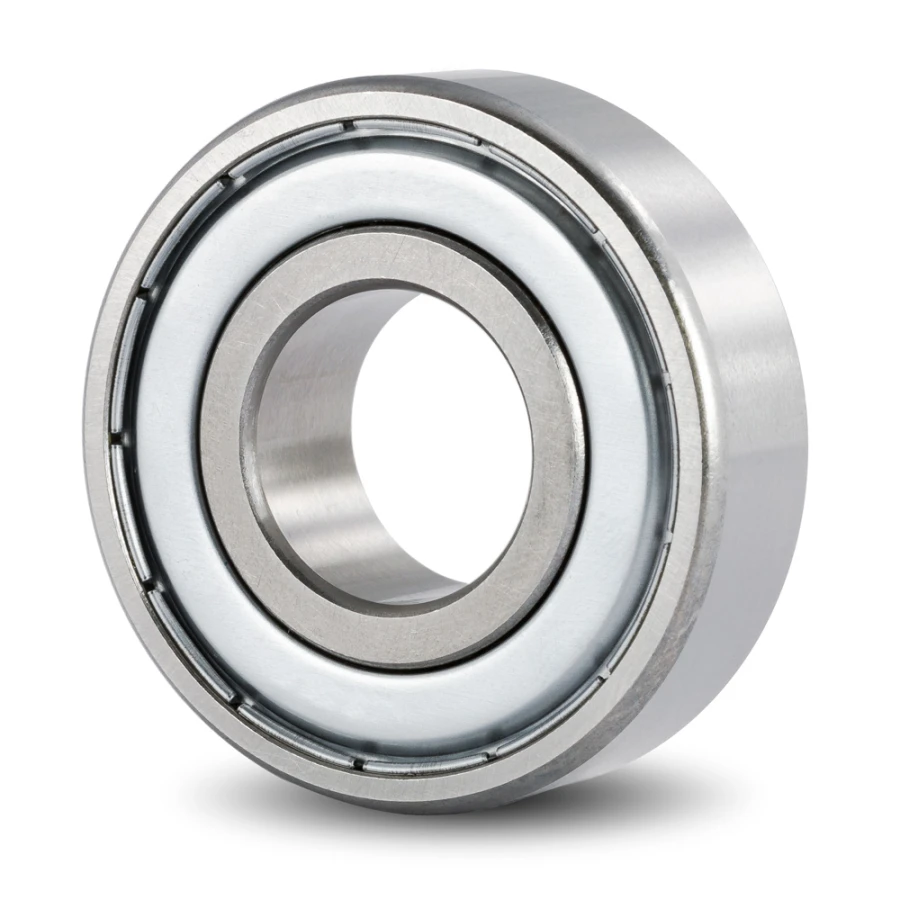

Image is for illustration purposes only.
What 6803-ZZ means
| Code | Position | Meaning |
|---|---|---|
6 |
Type | Deep groove ball bearing |
8 |
Diameter series | Diameter series 8 (extra thin): fixes OD and width for the bore (ISO 15) |
03 |
Bore | Bore code 03 = 17 mm (codes 00, 01, 02 and 03 are fixed at 10, 12, 15 and 17 mm) |
ZZ |
Closure | Metal shields, both sides |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
6803-ZZ specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 17 mm | 0.6693 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 26 mm | 1.0236 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 5 mm | 0.1969 in | ISO table for this designation, confirmed by supplier data |
| Bearing type | Deep groove ball bearing | Stated by the designation | |
| Seals / shields | Metal shields, both sides | Stated by the designation | |
| Internal clearance | Normal (CN): no clearance code in the designation | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
Equivalent to / interchanges with
| Brand | Part number | Basis |
|---|---|---|
| SKF | 6803 2Z | Brand suffix convention for this ISO size |
| TIMKEN | 6803 ZZ | Brand suffix convention for this ISO size |
| FAG | 6803 2ZR | Brand suffix convention for this ISO size |
| NSK | 6803 ZZ | Brand suffix convention for this ISO size |
| NTN | 6803 ZZ | Brand suffix convention for this ISO size |
| KOYO | 6803 ZZ | Brand suffix convention for this ISO size |
| NACHI | 6803 ZZE | Brand suffix convention for this ISO size |
Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables
6803-ZZ is a deep groove ball bearing, 17 mm bore × 26 mm OD × 5 mm wide (0.6693 × 1.0236 × 0.1969 in). It has metal shields on both sides. Other makers sell the same size as SKF 6803 2Z, TIMKEN 6803 ZZ, FAG 6803 2ZR, NSK 6803 ZZ.
The 6803-ZZ is a deep groove ball bearing with a 17mm bore diameter, 26mm outside diameter, and 5mm width. It features metal shields on both sides to protect against contaminants while allowing pre-lubrication for maintenance-free operation in many applications.
6803 ZZ 6800 (61800) Series Ball Bearing
