6413
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeCouldn't load pickup availability

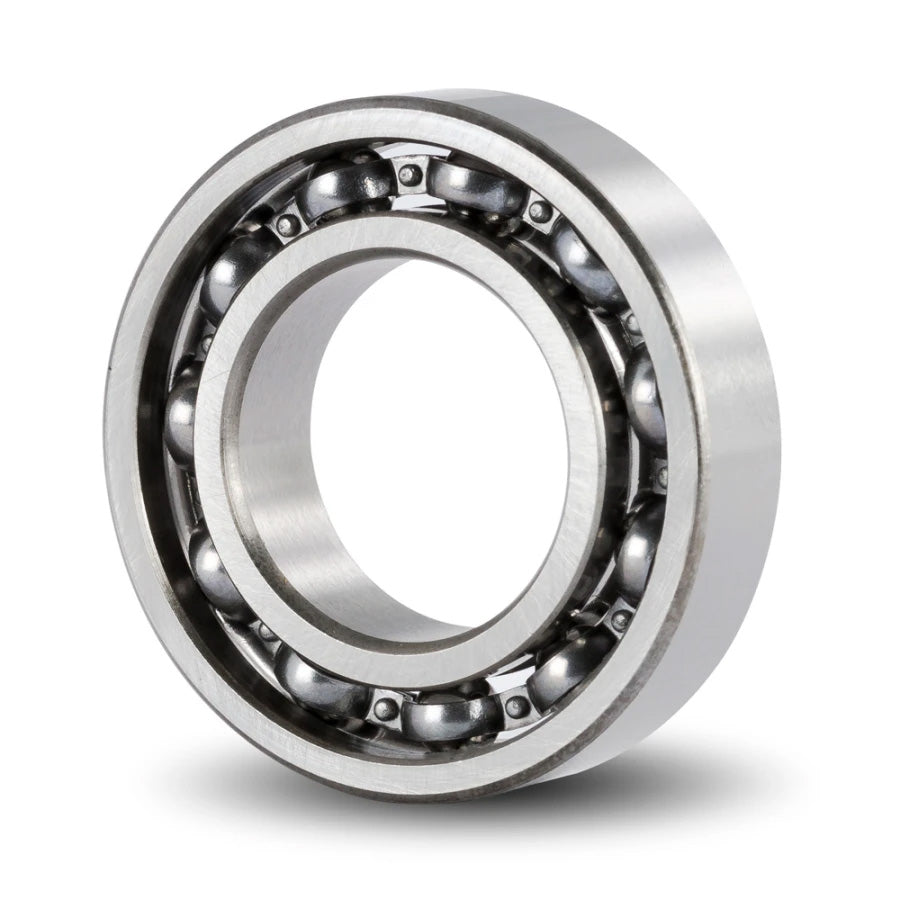

Image is for illustration purposes only.
What 6413 means
| Code | Position | Meaning |
|---|---|---|
6 |
Type | Deep groove ball bearing |
4 |
Diameter series | Diameter series 4 (heavy): fixes OD and width for the bore (ISO 15) |
13 |
Bore | Bore code 13 × 5 = 65 mm |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
6413 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 65 mm | 2.5591 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 160 mm | 6.2992 in | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Width (B) | 37 mm | 1.4567 in | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Bearing type | Deep groove ball bearing | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Internal clearance | Normal (CN): no clearance code in the designation | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
Equivalent to / interchanges with
| Brand | Part number | Basis |
|---|---|---|
| SKF | 6413 | Brand suffix convention for this ISO size |
| TIMKEN | 6413 | Brand suffix convention for this ISO size |
| FAG | 6413 | Brand suffix convention for this ISO size |
| NSK | 6413 | Brand suffix convention for this ISO size |
| NTN | 6413 | Brand suffix convention for this ISO size |
| KOYO | 6413 | Brand suffix convention for this ISO size |
| NACHI | 6413 | Brand suffix convention for this ISO size |
Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables
6413 is a deep groove ball bearing, 65 mm bore × 160 mm OD × 37 mm wide (2.5591 × 6.2992 × 1.4567 in). It has no seals or shields (open). Other makers sell the same size as SKF 6413, TIMKEN 6413, FAG 6413, NSK 6413.
The 6413 is a deep groove ball bearing from the 64 series with a 65mm bore diameter and open enclosure design without seals or shields. Deep groove ball bearings are versatile radial ball bearings capable of accommodating some axial loads in both directions.
