6315-RS

Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agree
$178.00 USD
$178.00 USD
Sale Sold out
Bore75 mm 2.9528 in
Outside dia.160 mm 6.2992 in
Width37 mm 1.4567 in
TypeDeep groove ball bearing
SealingContact rubber seal, one side
ClearanceNormal
Ships separately from our European warehouse — shipping from $79, quoted at checkout
Ships from our European partner stock — allow 5–8 business days

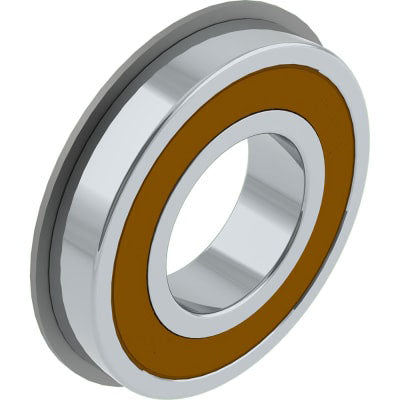

  • 6315-RS — illustration
1 1

Image is for illustration purposes only.

What 6315-RS means

CodePositionMeaning
6 Type Deep groove ball bearing
3 Diameter series Diameter series 3 (medium): fixes OD and width for the bore (ISO 15)
15 Bore Bore code 15 × 5 = 75 mm
RS Closure Contact rubber seal, one side

Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.

6315-RS specifications

Specification Metric Inch Basis
Bore (d) 75 mm 2.9528 in ISO table for this designation, confirmed by supplier data
Outside diameter (D) 160 mm 6.2992 in ISO table for this designation, confirmed by supplier data
Width (B) 37 mm 1.4567 in ISO table for this designation, confirmed by supplier data
Bearing type Deep groove ball bearing Stated by the designation
Seals / shields Contact rubber seal, one side Stated by the designation
Internal clearance Normal (CN): no clearance code in the designation Stated by the designation
Tolerance class Normal (ISO P0 / ABEC 1): no tolerance-class code Stated by the designation

6315-RS is a deep groove ball bearing, 75 mm bore × 160 mm OD × 37 mm wide (2.9528 × 6.2992 × 1.4567 in). It has a rubber contact seal on one side.

The 6315-RS is a deep groove ball bearing with 75mm bore diameter, 160mm outside diameter, and 37mm width. It features a single rubber seal on one side to protect against contaminants while allowing for lubrication access from the open side.
