62/32NR
Tier-one manufacturer — brand supplied may vary ✓ Dimensions confirmed by two independent sourcesCouldn't load pickup availability
Image is for illustration purposes only.
What 62/32NR means
| Code | Position | Meaning |
|---|---|---|
6 |
Type | Deep groove ball bearing |
2 |
Diameter series | Diameter series 2 (light): fixes OD and width for the bore (ISO 15) |
/32 |
Bore | Bore written in millimetres after the slash: 32 mm |
NR |
Snap ring | Snap-ring groove in the outer ring, with the snap ring fitted |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
62/32NR specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 32 mm | 1.2598 in | Two independent catalogue sources agree |
| Outside diameter (D) | 65 mm | 2.5591 in | Two independent catalogue sources agree |
| Width (B) | 17 mm | 0.6693 in | Two independent catalogue sources agree |
| Bearing type | Deep groove ball bearing | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Internal clearance | Normal (CN): no clearance code in the designation | Stated by the designation | |
| Snap ring | Snap-ring groove in the outer ring, with the snap ring fitted | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
Equivalent to / interchanges with
| Brand | Part number | Basis |
|---|---|---|
| SKF | 62/32 NR | Brand suffix convention for this ISO size |
| TIMKEN | 62/32 NR | Brand suffix convention for this ISO size |
| FAG | 62/32 NR | Brand suffix convention for this ISO size |
| NSK | 62/32 NR | Brand suffix convention for this ISO size |
| NTN | 62/32 NR | Brand suffix convention for this ISO size |
| KOYO | 62/32 NR | Brand suffix convention for this ISO size |
| NACHI | 62/32 NR | Brand suffix convention for this ISO size |
Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables

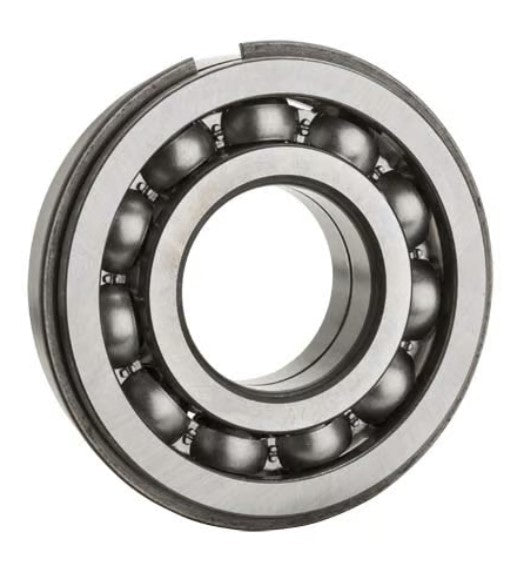

62/32NR is a deep groove ball bearing, 32 mm bore × 65 mm OD × 17 mm wide (1.2598 × 2.5591 × 0.6693 in). It has no seals or shields (open) and a snap-ring groove in the outer ring, with the snap ring fitted. Other makers sell the same size as SKF 62/32 NR, TIMKEN 62/32 NR, FAG 62/32 NR, NSK 62/32 NR.
The 62/32 NR is a single row deep groove ball bearing from the light 62 series, featuring a snap ring groove (NR) on the outer ring for axial location in the housing. Deep groove ball bearings are versatile radial bearings capable of handling moderate thrust loads in both directions.
62/32 NR 60579005338 Single Row Ball Bearing Light Series
