6222LLU
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeCouldn't load pickup availability

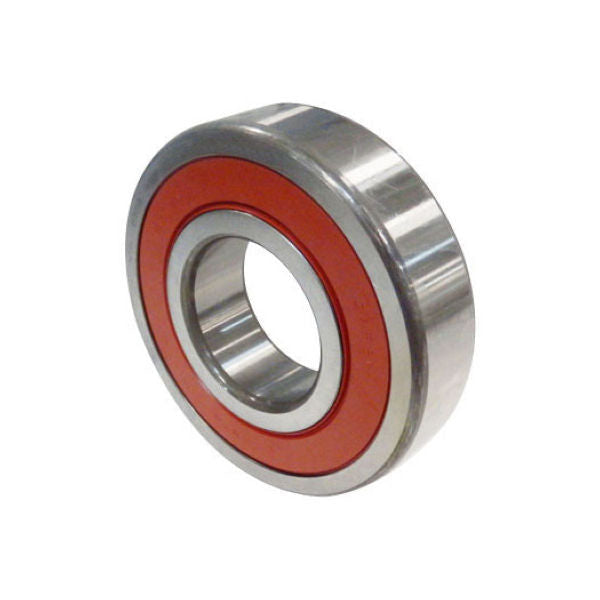

Image is for illustration purposes only.
What 6222LLU means
| Code | Position | Meaning |
|---|---|---|
6 |
Type | Deep groove ball bearing |
2 |
Diameter series | Diameter series 2 (light): fixes OD and width for the bore (ISO 15) |
22 |
Bore | Bore code 22 × 5 = 110 mm |
LLU |
Closure | Contact rubber seals, both sides |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
6222LLU specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 110 mm | 4.3307 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 200 mm | 7.874 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 38 mm | 1.4961 in | ISO table for this designation, confirmed by supplier data |
| Bearing type | Deep groove ball bearing | Stated by the designation | |
| Seals / shields | Contact rubber seals, both sides | Stated by the designation | |
| Internal clearance | Normal (CN): no clearance code in the designation | Stated by the designation | |
| Cage | Steel | Supplier catalogue listing | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
| Material | Steel | Supplier catalogue listing | |
| Dynamic load rating, C | 159.96 kN | 35,960 lbf |
|---|---|---|
| Static load rating, C0 | 116.99 kN | 26,300 lbf |
| Limiting speed, grease | 2,200 rpm | |
Equivalent to / interchanges with
| Brand | Part number | Basis |
|---|---|---|
| SKF | 6222 2RSH | Brand suffix convention for this ISO size |
| TIMKEN | 6222 2RS | Brand suffix convention for this ISO size |
| FAG | 6222 2RSR | Brand suffix convention for this ISO size |
| NSK | 6222 DDU | Brand suffix convention for this ISO size |
| NTN | 6222 LLU | Brand suffix convention for this ISO size |
| KOYO | 6222 2RS | Brand suffix convention for this ISO size |
| NACHI | 6222 2NSE | Brand suffix convention for this ISO size |
Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables
6222LLU is a deep groove ball bearing, 110 mm bore × 200 mm OD × 38 mm wide (4.3307 × 7.874 × 1.4961 in). It has rubber contact seals on both sides. Other makers sell the same size as SKF 6222 2RSH, TIMKEN 6222 2RS, FAG 6222 2RSR, NSK 6222 DDU. NTN catalogue values for 6222LLU: dynamic load rating C = 159.96 kN, static C0 = 116.99 kN, limiting speed 2,200 rpm on grease.
The 6222LLU is a deep groove ball bearing with contact rubber seals on both sides, featuring a 110mm bore diameter, 200mm outside diameter, and 38mm width. The double seal design provides protection against contaminants while retaining lubrication for extended service life.
