6212-Z-C3
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeRegular price
$51.95 USD
Regular price
Sale price
$51.95 USD
Unit price
per
Couldn't load pickup availability
Bore60 mm
2.3622 in
Outside dia.110 mm
4.3307 in
Width22 mm
0.8661 in
TypeDeep groove ball bearing
SealingMetal shield, one side
ClearanceC3
Ships separately from our European warehouse — shipping from $79, quoted at checkout
Ships from our European partner stock — allow 5–8 business days
Ships from our European partner stock — allow 5–8 business days

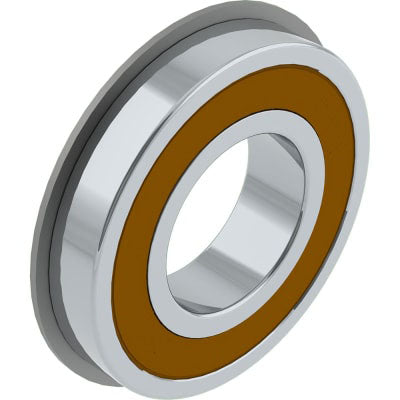

Image is for illustration purposes only.
What 6212-Z-C3 means
| Code | Position | Meaning |
|---|---|---|
6 |
Type | Deep groove ball bearing |
2 |
Diameter series | Diameter series 2 (light): fixes OD and width for the bore (ISO 15) |
12 |
Bore | Bore code 12 × 5 = 60 mm |
Z |
Closure | Metal shield, one side |
C3 |
Internal clearance | C3: radial internal clearance greater than Normal |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
6212-Z-C3 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 60 mm | 2.3622 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 110 mm | 4.3307 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 22 mm | 0.8661 in | ISO table for this designation, confirmed by supplier data |
| Bearing type | Deep groove ball bearing | Stated by the designation | |
| Seals / shields | Metal shield, one side | Stated by the designation | |
| Internal clearance | C3 (greater than Normal) | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
6212-Z-C3 is a deep groove ball bearing, 60 mm bore × 110 mm OD × 22 mm wide (2.3622 × 4.3307 × 0.8661 in). It has a metal shield on one side and C3 internal clearance.
The 6212-Z-C3 is a deep groove ball bearing with a 60mm bore diameter, 110mm outside diameter, and 22mm width. It features a single metal shield on one side and C3 radial internal clearance, which is greater than normal clearance for applications requiring compensation for thermal expansion or interference fits.
Inner Diameter (ID)
60 mm
Outside Diameter (OD)
110 mm
Width
22 mm
Series
62
Bearing Type
Deep groove ball bearing
