6211-Z-C3
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeRegular price
$36.95 USD
Regular price
Sale price
$36.95 USD
Unit price
per
Couldn't load pickup availability
Bore55 mm
2.1654 in
Outside dia.100 mm
3.937 in
Width21 mm
0.8268 in
TypeDeep groove ball bearing
SealingMetal shield, one side
ClearanceC3
Ships separately from our European warehouse — shipping from $79, quoted at checkout
Ships from our European partner stock — allow 5–8 business days
Ships from our European partner stock — allow 5–8 business days

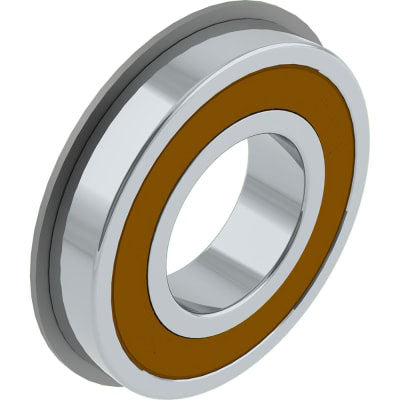

Image is for illustration purposes only.
What 6211-Z-C3 means
| Code | Position | Meaning |
|---|---|---|
6 |
Type | Deep groove ball bearing |
2 |
Diameter series | Diameter series 2 (light): fixes OD and width for the bore (ISO 15) |
11 |
Bore | Bore code 11 × 5 = 55 mm |
Z |
Closure | Metal shield, one side |
C3 |
Internal clearance | C3: radial internal clearance greater than Normal |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
6211-Z-C3 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 55 mm | 2.1654 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 100 mm | 3.937 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 21 mm | 0.8268 in | ISO table for this designation, confirmed by supplier data |
| Bearing type | Deep groove ball bearing | Stated by the designation | |
| Seals / shields | Metal shield, one side | Stated by the designation | |
| Internal clearance | C3 (greater than Normal) | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
6211-Z-C3 is a deep groove ball bearing, 55 mm bore × 100 mm OD × 21 mm wide (2.1654 × 3.937 × 0.8268 in). It has a metal shield on one side and C3 internal clearance.
The 6211-Z-C3 is a deep groove ball bearing with 55mm bore diameter, 100mm outside diameter, and 21mm width. It features a single metal shield on one side and C3 internal clearance for applications with thermal expansion or shaft deflection requirements.
Inner Diameter (ID)
55 mm
Outside Diameter (OD)
100 mm
Width
21 mm
Series
62
Bearing Type
Deep groove ball bearing
