6026-ZZ-C3
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeCouldn't load pickup availability

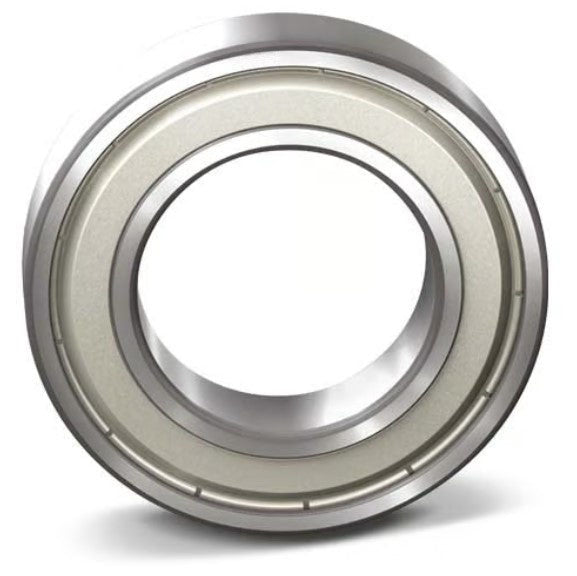

Image is for illustration purposes only.
What 6026-ZZ-C3 means
| Code | Position | Meaning |
|---|---|---|
6 |
Type | Deep groove ball bearing |
0 |
Diameter series | Diameter series 0 (extra light): fixes OD and width for the bore (ISO 15) |
26 |
Bore | Bore code 26 × 5 = 130 mm |
ZZ |
Closure | Metal shields, both sides |
C3 |
Internal clearance | C3: radial internal clearance greater than Normal |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
6026-ZZ-C3 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 130 mm | 5.1181 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 200 mm | 7.874 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 33 mm | 1.2992 in | ISO table for this designation, confirmed by supplier data |
| Bearing type | Deep groove ball bearing | Stated by the designation | |
| Seals / shields | Metal shields, both sides | Stated by the designation | |
| Internal clearance | C3 (greater than Normal) | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
| Dynamic load rating, C | 105 kN | 23,605 lbf |
|---|---|---|
| Static load rating, C0 | 96.8 kN | 21,762 lbf |
Equivalent to / interchanges with
| Brand | Part number | Basis |
|---|---|---|
| SKF | 6026 2Z C3 | Brand suffix convention for this ISO size |
| TIMKEN | 6026 ZZ C3 | Brand suffix convention for this ISO size |
| FAG | 6026 2ZR C3 | Brand suffix convention for this ISO size |
| NSK | 6026 ZZ C3 | Brand suffix convention for this ISO size |
| NTN | 6026 ZZ C3 | Brand suffix convention for this ISO size |
| KOYO | 6026 ZZ C3 | Brand suffix convention for this ISO size |
| NACHI | 6026 ZZE C3 | Brand suffix convention for this ISO size |
Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables
6026-ZZ-C3 is a deep groove ball bearing, 130 mm bore × 200 mm OD × 33 mm wide (5.1181 × 7.874 × 1.2992 in). It has metal shields on both sides and C3 internal clearance. Other makers sell the same size as SKF 6026 2Z C3, TIMKEN 6026 ZZ C3, FAG 6026 2ZR C3, NSK 6026 ZZ C3. TIMKEN catalogue values for 6026-ZZ-C3: dynamic load rating C = 105 kN, static C0 = 96.8 kN.
The 6026-ZZ-C3 is a single row deep groove ball bearing featuring metal shields on both sides for protection against contaminants while allowing pre-lubrication. With a 130mm bore diameter, 200mm outside diameter, and 33mm width, this bearing operates with C3 radial clearance for applications requiring greater internal clearance than standard.
6026-ZZ-C3 Ball Deep Groove Radial <12 OD ISO
