6024-Z-C3
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeRegular price
$241.00 USD
Regular price
Sale price
$241.00 USD
Unit price
per
Couldn't load pickup availability
Bore120 mm
4.7244 in
Outside dia.180 mm
7.0866 in
Width28 mm
1.1024 in
TypeDeep groove ball bearing
SealingMetal shield, one side
ClearanceC3
Ships separately from our European warehouse — shipping from $79, quoted at checkout
Ships from our European partner stock — allow 5–8 business days
Ships from our European partner stock — allow 5–8 business days

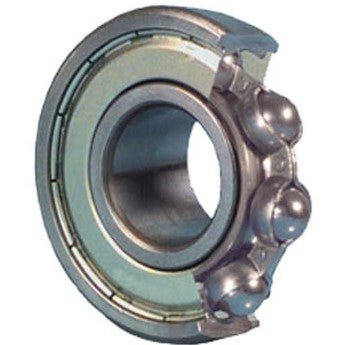

Image is for illustration purposes only.
What 6024-Z-C3 means
| Code | Position | Meaning |
|---|---|---|
6 |
Type | Deep groove ball bearing |
0 |
Diameter series | Diameter series 0 (extra light): fixes OD and width for the bore (ISO 15) |
24 |
Bore | Bore code 24 × 5 = 120 mm |
Z |
Closure | Metal shield, one side |
C3 |
Internal clearance | C3: radial internal clearance greater than Normal |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
6024-Z-C3 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 120 mm | 4.7244 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 180 mm | 7.0866 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 28 mm | 1.1024 in | ISO table for this designation, confirmed by supplier data |
| Bearing type | Deep groove ball bearing | Stated by the designation | |
| Seals / shields | Metal shield, one side | Stated by the designation | |
| Internal clearance | C3 (greater than Normal) | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
6024-Z-C3 is a deep groove ball bearing, 120 mm bore × 180 mm OD × 28 mm wide (4.7244 × 7.0866 × 1.1024 in). It has a metal shield on one side and C3 internal clearance.
The 6024-Z-C3 is a deep groove ball bearing with a 120mm bore diameter, 180mm outside diameter, and 28mm width. It features a single metal shield on one side and C3 internal clearance, which is greater than normal clearance for applications with thermal expansion or shaft/housing interference fits.
Inner Diameter (ID)
120 mm
Outside Diameter (OD)
180 mm
Width
28 mm
Series
60
Bearing Type
Deep groove ball bearing
