6021-Z-C3
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeRegular price
$169.00 USD
Regular price
Sale price
$169.00 USD
Unit price
per
Couldn't load pickup availability
Bore105 mm
4.1339 in
Outside dia.160 mm
6.2992 in
Width26 mm
1.0236 in
TypeDeep groove ball bearing
SealingMetal shield, one side
ClearanceC3
Ships separately from our European warehouse — shipping from $79, quoted at checkout
Ships from our European partner stock — allow 5–8 business days
Ships from our European partner stock — allow 5–8 business days

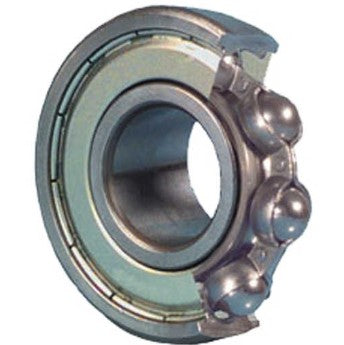

Image is for illustration purposes only.
What 6021-Z-C3 means
| Code | Position | Meaning |
|---|---|---|
6 |
Type | Deep groove ball bearing |
0 |
Diameter series | Diameter series 0 (extra light): fixes OD and width for the bore (ISO 15) |
21 |
Bore | Bore code 21 × 5 = 105 mm |
Z |
Closure | Metal shield, one side |
C3 |
Internal clearance | C3: radial internal clearance greater than Normal |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
6021-Z-C3 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 105 mm | 4.1339 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 160 mm | 6.2992 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 26 mm | 1.0236 in | ISO table for this designation, confirmed by supplier data |
| Bearing type | Deep groove ball bearing | Stated by the designation | |
| Seals / shields | Metal shield, one side | Stated by the designation | |
| Internal clearance | C3 (greater than Normal) | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
6021-Z-C3 is a deep groove ball bearing, 105 mm bore × 160 mm OD × 26 mm wide (4.1339 × 6.2992 × 1.0236 in). It has a metal shield on one side and C3 internal clearance.
The 6021-Z-C3 is a deep groove ball bearing with 105mm bore diameter, 160mm outside diameter, and 26mm width. It features a single metal shield on one side and C3 radial internal clearance, which is greater than normal clearance for applications requiring additional thermal expansion accommodation.
Inner Diameter (ID)
105 mm
Outside Diameter (OD)
160 mm
Width
26 mm
Series
60
Bearing Type
Deep groove ball bearing
