6005ZZNR
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeCouldn't load pickup availability

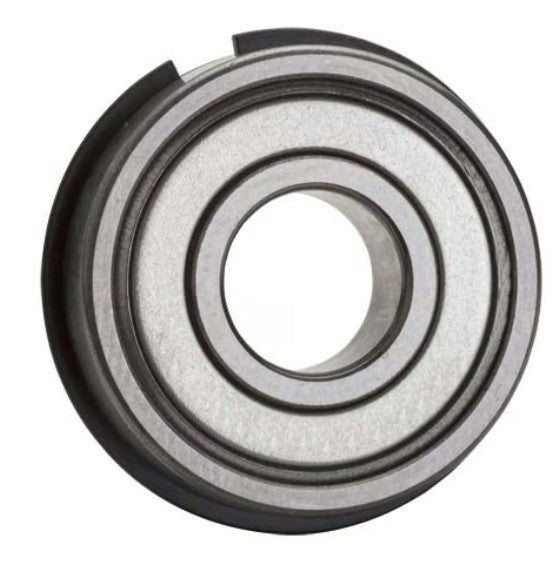

Image is for illustration purposes only.
What 6005ZZNR means
| Code | Position | Meaning |
|---|---|---|
6 |
Type | Deep groove ball bearing |
0 |
Diameter series | Diameter series 0 (extra light): fixes OD and width for the bore (ISO 15) |
05 |
Bore | Bore code 05 × 5 = 25 mm |
ZZ |
Closure | Metal shields, both sides |
NR |
Snap ring | Snap-ring groove in the outer ring, with the snap ring fitted |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
6005ZZNR specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 25 mm | 0.9843 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 47 mm | 1.8504 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 12 mm | 0.4724 in | ISO table for this designation, confirmed by supplier data |
| Bearing type | Deep groove ball bearing | Stated by the designation | |
| Seals / shields | Metal shields, both sides | Stated by the designation | |
| Internal clearance | Normal (CN): no clearance code in the designation | Stated by the designation | |
| Cage | Steel | Supplier catalogue listing | |
| Snap ring | Snap-ring groove in the outer ring, with the snap ring fitted | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
| Material | Steel | Supplier catalogue listing | |
| Dynamic load rating, C | 11.17 kN | 2,511 lbf |
|---|---|---|
| Static load rating, C0 | 5.87 kN | 1,320 lbf |
| Limiting speed, grease | 15,000 rpm | |
Equivalent to / interchanges with
| Brand | Part number | Basis |
|---|---|---|
| SKF | 6005 2Z NR | Brand suffix convention for this ISO size |
| TIMKEN | 6005 ZZ NR | Brand suffix convention for this ISO size |
| FAG | 6005 2ZR NR | Brand suffix convention for this ISO size |
| NSK | 6005 ZZ NR | Brand suffix convention for this ISO size |
| NTN | 6005 ZZ NR | Brand suffix convention for this ISO size |
| KOYO | 6005 ZZ NR | Brand suffix convention for this ISO size |
| NACHI | 6005 ZZE NR | Brand suffix convention for this ISO size |
Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables
6005ZZNR is a deep groove ball bearing, 25 mm bore × 47 mm OD × 12 mm wide (0.9843 × 1.8504 × 0.4724 in). It has metal shields on both sides and a snap-ring groove in the outer ring, with the snap ring fitted. Other makers sell the same size as SKF 6005 2Z NR, TIMKEN 6005 ZZ NR, FAG 6005 2ZR NR, NSK 6005 ZZ NR. NTN catalogue values for 6005ZZNR: dynamic load rating C = 11.17 kN, static C0 = 5.87 kN, limiting speed 15,000 rpm on grease.
The 6005-ZZ-NR is a deep groove ball bearing with a 25 mm bore diameter, 47 mm outside diameter, and 12 mm width. It features metal shields on both sides for protection against contaminants while allowing pre-lubrication, and includes a snap ring with groove on the outer ring for axial positioning.
