5213ZZ

Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agree
$103.57 USD
$103.57 USD
Sale Sold out
Bore65 mm 2.5591 in
Outside dia.120 mm 4.7244 in
Width38.1 mm 1.5 in
TypeDouble row angular contact ball bearing
SealingMetal shields, both sides
ClearanceNormal
Flat-rate shipping — calculated by weight at checkout
  • 5213ZZ Ball Bearings
1 1

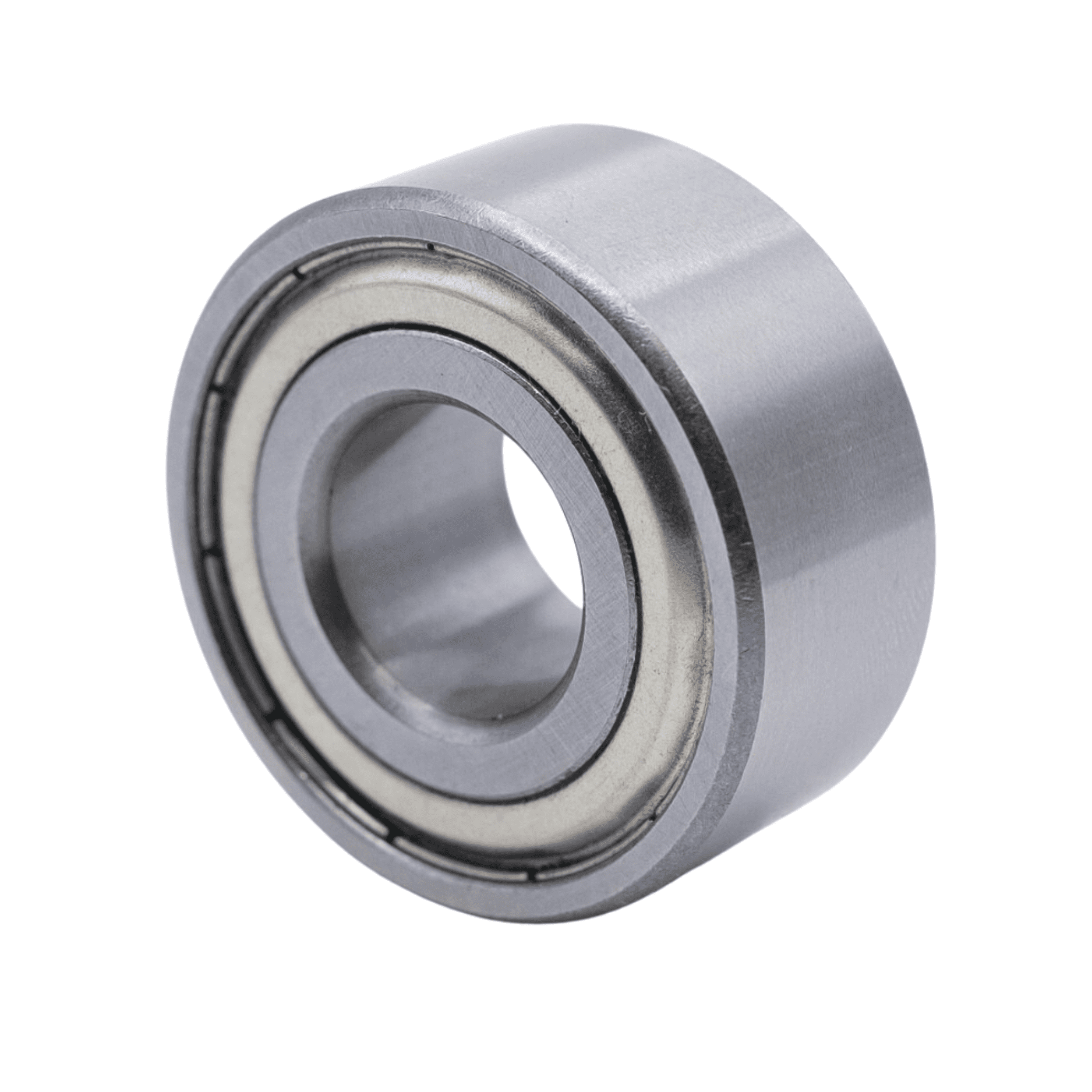

Image is for illustration purposes only.

What 5213ZZ means

CodePositionMeaning
52 Series Series 52: angular contact ball bearing, double row, diameter series 2 (light)
13 Bore Bore code 13 × 5 = 65 mm
ZZ Closure Metal shields, both sides

Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.

5213ZZ specifications

Specification Metric Inch Basis
Bore (d) 65 mm 2.5591 in ISO table for this designation, confirmed by supplier data
Outside diameter (D) 120 mm 4.7244 in ISO table for this designation, confirmed by supplier data
Width (B) 38.1 mm 1.5 in Maker's catalogue (PEER Bearing), confirmed by supplier data
Bearing type Double row angular contact ball bearing Stated by the designation
Seals / shields Metal shields, both sides Stated by the designation
Internal clearance Normal (CN): no clearance code in the designation Stated by the designation
Tolerance class Normal (ISO P0 / ABEC 1): no tolerance-class code Stated by the designation

5213ZZ is a double row angular contact ball bearing, 65 mm bore × 120 mm OD × 38.1 mm wide (2.5591 × 4.7244 × 1.5 in). It has metal shields on both sides.
