51420
Tier-one manufacturer — brand supplied may vary ✓ Bore checked against the ISO tableRegular price
$2,264.00 USD
Regular price
Sale price
$2,264.00 USD
Unit price
per
Couldn't load pickup availability
Bore100 mm
3.937 in
Outside dia.210 mm
8.2677 in
Height85 mm
3.3465 in
TypeThrust ball bearing
SealingOpen
Ships separately from our European warehouse — shipping from $79, quoted at checkout
Ships from our European partner stock — allow 5–8 business days
Ships from our European partner stock — allow 5–8 business days

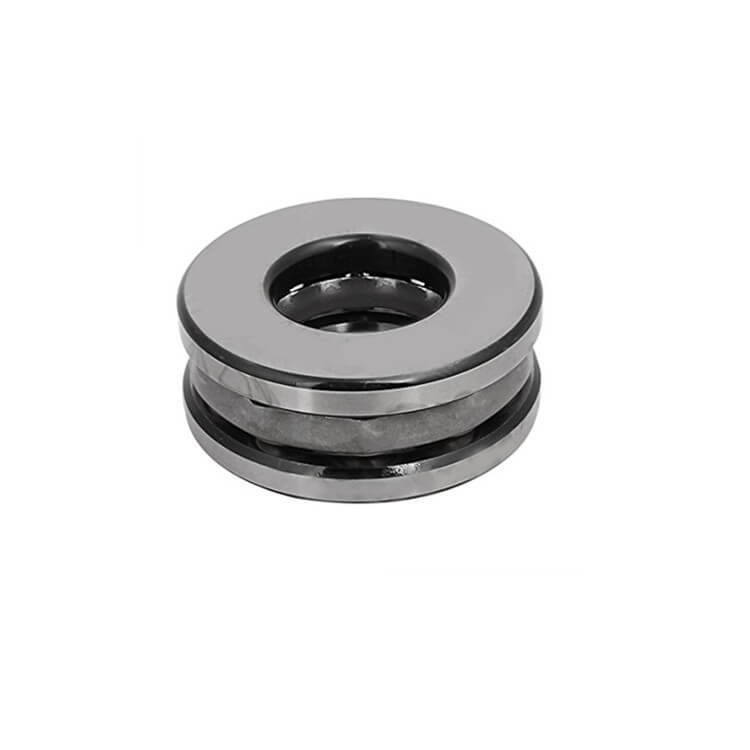

Image is for illustration purposes only.
What 51420 means
| Code | Position | Meaning |
|---|---|---|
5 |
Type | Thrust ball bearing |
1 |
Height series | Height series 1 |
4 |
Diameter series | Diameter series 4 (heavy) |
20 |
Bore | Bore code 20 × 5 = 100 mm |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
51420 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 100 mm | 3.937 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 210 mm | 8.2677 in | Supplier catalogue listing |
| Height (H) | 85 mm | 3.3465 in | Supplier catalogue listing |
| Bearing type | Thrust ball bearing | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
51420 is a thrust ball bearing, 100 mm bore × 210 mm OD × 85 mm wide (3.937 × 8.2677 × 3.3465 in).
The 51420 is a thrust ball bearing designed to support pure axial loads in one direction. With a 100mm bore diameter, this bearing from the 514 series features a robust construction suitable for industrial machinery requiring axial load capacity.
Inner Diameter (ID)
100 mm
Outside Diameter (OD)
210 mm
Width
85 mm
Series
514
Bearing Type
Thrust ball bearing
