51322
Tier-one manufacturer — brand supplied may vary ✓ Bore checked against the ISO tableRegular price
$658.33 USD
Regular price
Sale price
$658.33 USD
Unit price
per
Couldn't load pickup availability
Bore110 mm
4.3307 in
Outside dia.190 mm
7.4803 in
Height63 mm
2.4803 in
TypeThrust ball bearing
SealingOpen
Flat-rate shipping — calculated by weight at checkout

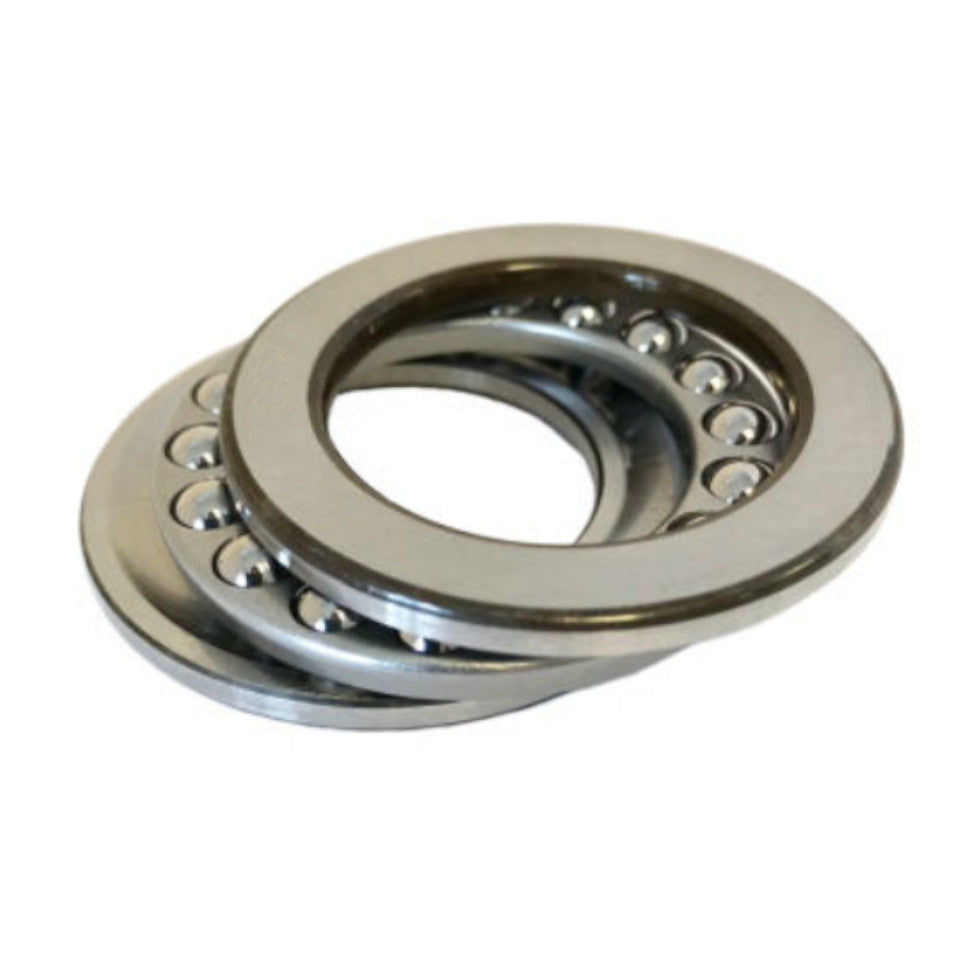

Image is for illustration purposes only.
What 51322 means
| Code | Position | Meaning |
|---|---|---|
5 |
Type | Thrust ball bearing |
1 |
Height series | Height series 1 |
3 |
Diameter series | Diameter series 3 (medium) |
22 |
Bore | Bore code 22 × 5 = 110 mm |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
51322 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 110 mm | 4.3307 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 190 mm | 7.4803 in | Supplier catalogue listing |
| Height (H) | 63 mm | 2.4803 in | Supplier catalogue listing |
| Bearing type | Thrust ball bearing | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
| Material | Nitrile | Supplier catalogue listing | |
51322 is a thrust ball bearing, 110 mm bore × 190 mm OD × 63 mm wide (4.3307 × 7.4803 × 2.4803 in).
The 51322 is a thrust ball bearing from the 513 series with a 110 mm bore diameter. Thrust ball bearings are designed to support axial loads in a single direction and provide precise axial guidance with minimal friction.
Measurement Type
Metric
Inner Diameter (ID)
110 mm
Outside Diameter (OD)
190 mm
Width
63 mm
Sealing
Open
Precision Class
ISO P0
Ball Material
Nitrile
Series
513
Bearing Type
Thrust ball bearing
Other Features
Single Direction | Thrust Ball Bearing | Metric Series
Component
Assembly
Weight (kg)
7.7
Basic Number
51322
UNSPSC
31171552
