4T-30212

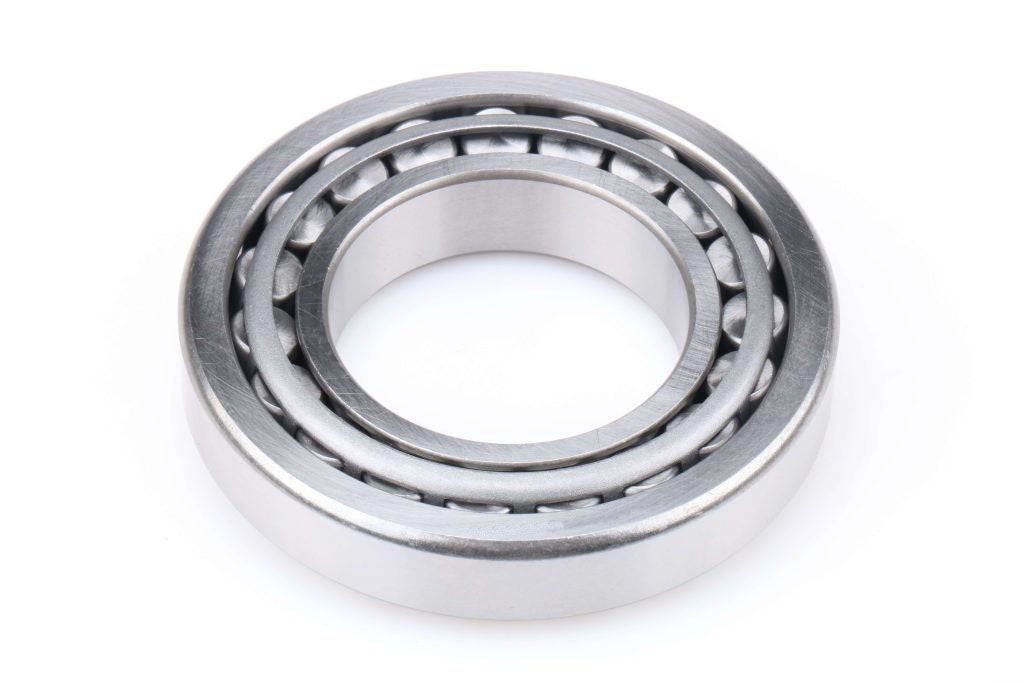

The 4T-30212 is a tapered roller bearing featuring a cone (inner ring), cup (outer ring), tapered rollers, and cage assembly. The 30212 designation indicates a metric series single-row tapered roller bearing with specific bore, outer diameter, and width dimensions.
Tapered roller bearings are commonly used in applications requiring high radial and axial load capacity in a single direction, including automotive wheel hubs, gearboxes, differential assemblies, and industrial machinery where combined loads and precise shaft positioning are essential.
For large orders ($2000+) please inquire by email.
Measurement Type
Metric
Inner Diameter (ID)
60 mm
Outside Diameter (OD)
110 mm
Width
22 mm
Sealing
Open
Precision Class
ISO P0
Arrangement
One
Ball Material
Case Carburized Steel
Bearing Type
Tapered Roller Bearing
Other Features
Single Row | Tapered Roller Bearing
Component
Assembly
Number of Tapered Rows
1
Weight (kg)
0.929
Basic Number
30212
UNSPSC
31171504
