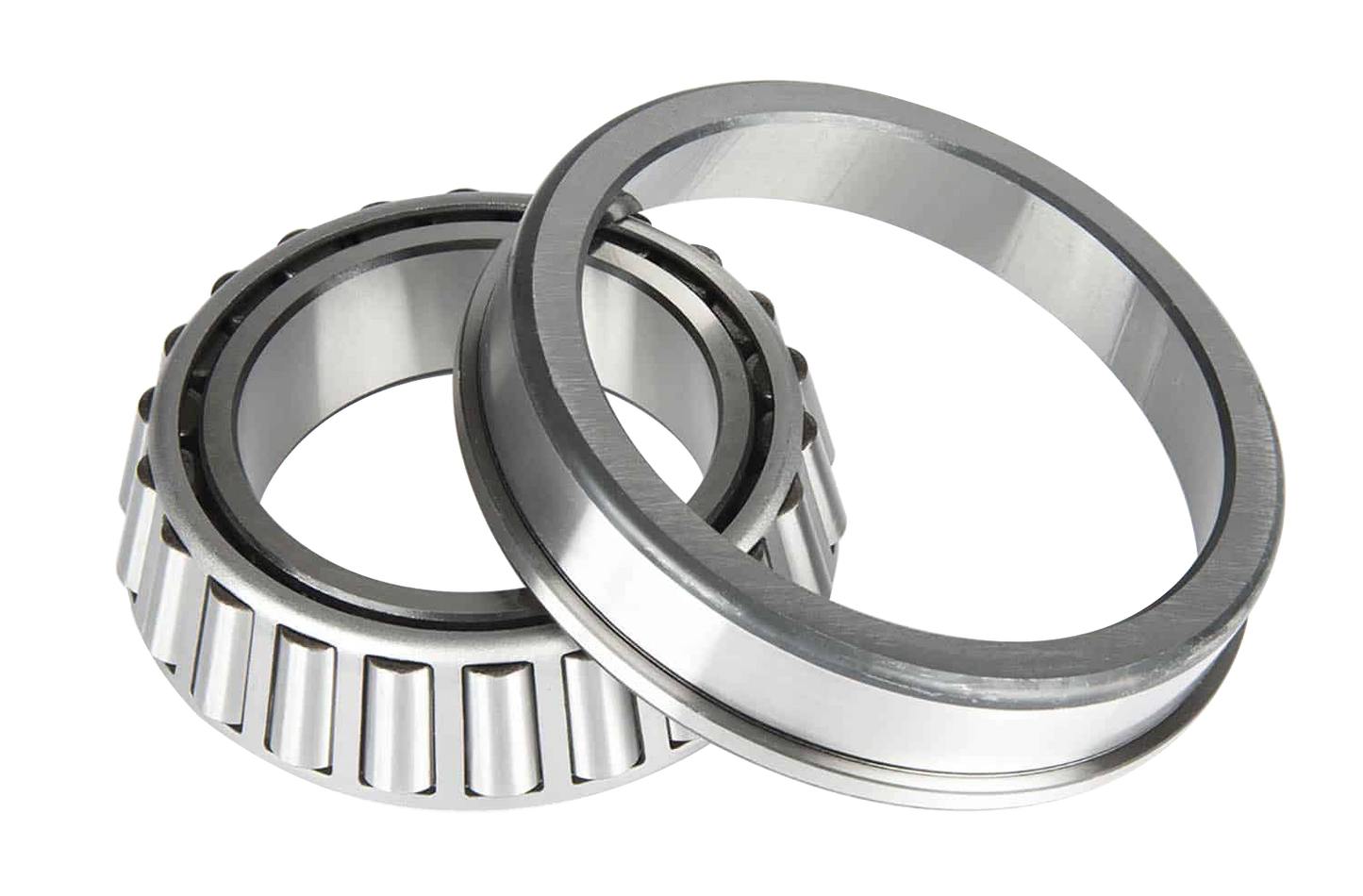

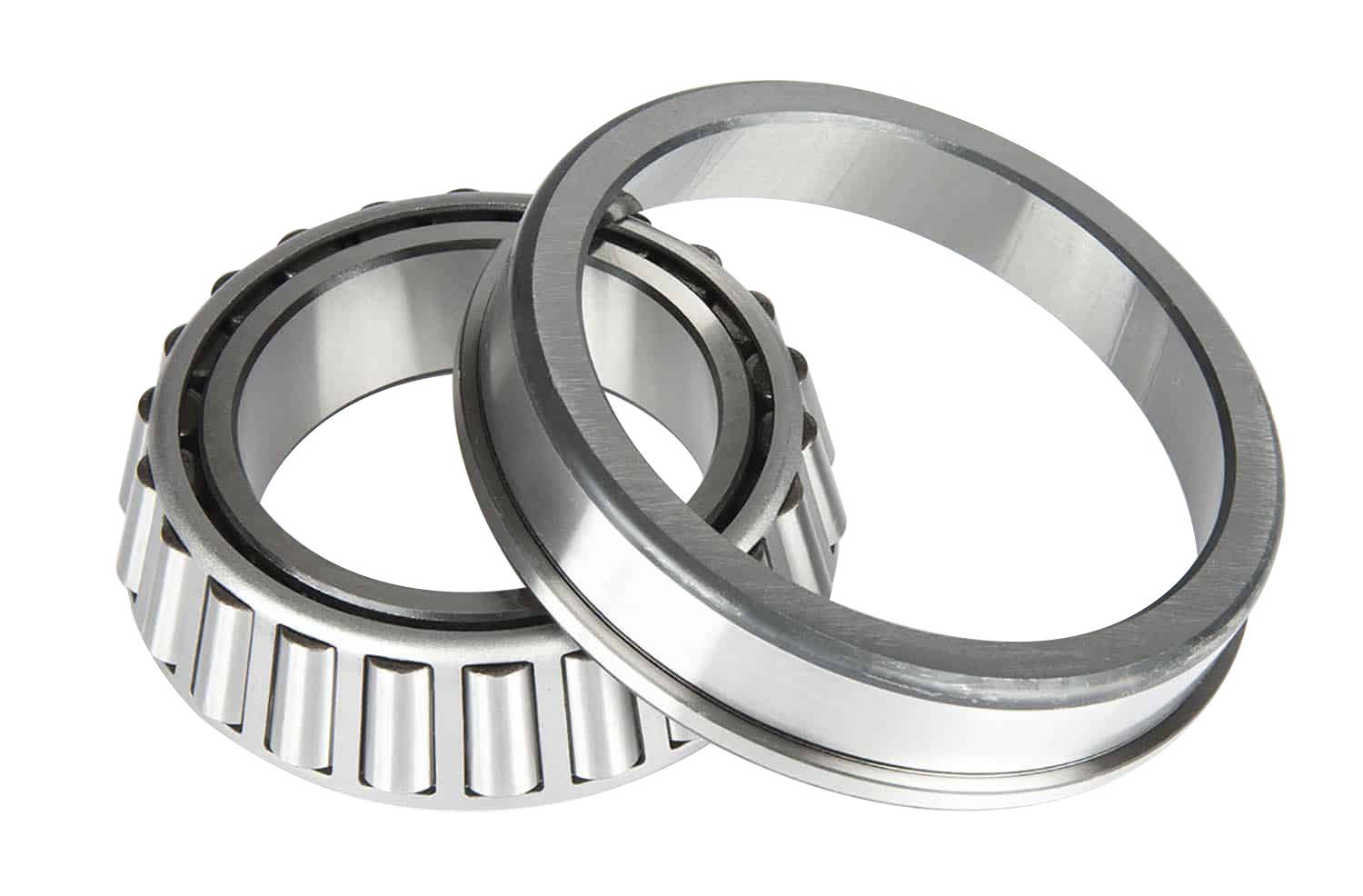

Image is for illustration purposes only.
47490/47420
The 47490/47420 is a single row tapered roller bearing set consisting of a cone (inner ring) and cup (outer ring) assembly. This inch-series design uses tapered raceways to accommodate combined radial and thrust loads, with rollers guided by a rib on the cone.
Commonly used in automotive axles, industrial gearboxes, agricultural equipment, and construction machinery where separable bearing components are advantageous for assembly and maintenance. The cross-references indicate applications in Chrysler, Deere, Clark, and Allis-Chalmers equipment.
Interchange / cross reference
ALLISC 665587ALLISC A665587AUSTIN 312809AUSTIN 313360CHICAGO RAWHIDE BR47490CHICAGO RAWHIDE BR47420CHRYSL 1793403CHRYSL 1793677CLARK 710789CLARK G223277CLARK SK11525CLARK 710788DEERE 4X3709DEERE 39X21022ADEERE 4X3708
Cross-references are provided as a guide — verify dimensions and fit for your application.
For large orders ($2000+) please inquire by email.
Measurement Type
Imperial
Inner Diameter (ID)
2 13/16 in
Outside Diameter (OD)
4.7244 mm / 4.7244 in
Width
1 9/32 in
Sealing
Open
Precision Class
ISO P0
Arrangement
One
Ball Material
Case carburized steel
Bearing Type
Tapered Roller Bearing
Other Features
Single Row | Tapered Roller Bearing
Component
Assembly
Assembly Components
47490 (1) | 47420 (1)
Number of Tapered Rows
1
Weight (kg)
1.46
Basic Number
47490/47420
UNSPSC
31171516
