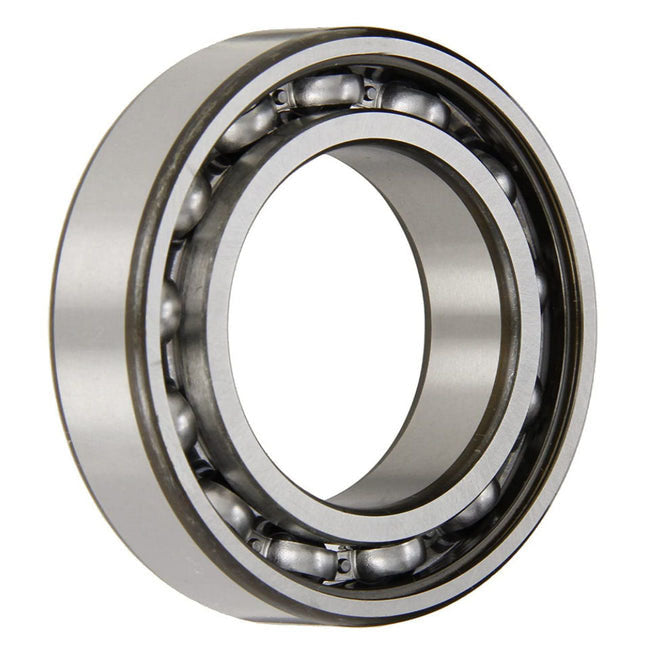

Image is for illustration purposes only.
45TAC100CSUHPN7
The 45TAC100CSUHPN7 is a precision ball screw support bearing designed for axial and radial loads in machine tool applications. This single bearing features a 45mm bore, 100mm outer diameter, and contact seals for protection against contamination.
Ball screw support bearings are commonly used in CNC machine tools, precision grinding equipment, injection molding machines, and other applications requiring accurate positioning and smooth operation under combined thrust and radial loads. The ABEC-7 precision class ensures high accuracy and repeatability in demanding industrial environments.
45TAC100CSUHPN7 Metric Ball Screw Support Bearing-Single
For large orders ($2000+) please inquire by email.
Measurement Type
Metric
Inner Diameter (ID)
45 mm
Outside Diameter (OD)
100 mm
Width
20 mm
Sealing
Open
Precision Class
ABEC 7 | ISO P4
Contact Angle
15 degrees
Arrangement
Single
Cage
Polyamide
Bearing Type
Angular Contact Spindle Bearing
Other Features
Single Row | Angular Contact Thrust Bearing | Ball Screw Support | High Capacity | Bore and OD are Exclusive All Others are ISO 4
Component
Assembly
Weight (kg)
0.842
Basic Number
45TAC100
UNSPSC
31171552
